Espire Hybrid Elbow

Wrist Size
Locking Function
Elbow Function
Battery Type
Removable Smart Li-ion 10.8 V,
3000 mAh
Inputs = 12, Outputs = 4

Key Features

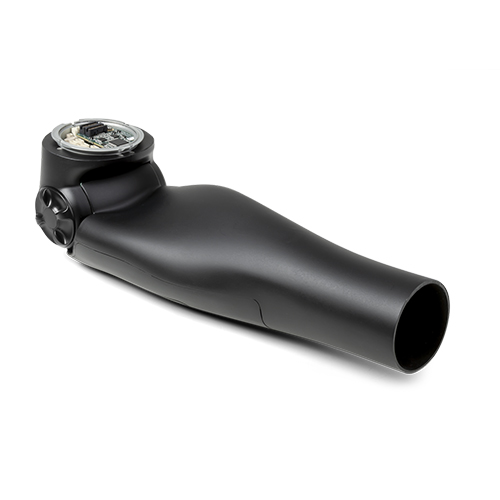

Similar to the Espire Pro, the Hybrid model features a removable battery for powering a wrist unit and terminal device, alongside an electric lock system. However rather than a powered elbow joint, it features a dial adjustable mechanism which counterbalances the forearm, wrist, and terminal device to negate the effects of gravity.

The input capabilities of the device allow it to control terminal devices, and still retain an anatomical shape whilst being both high-tech and lightweight.

Download Brochure     Order Form

Technical Manual

Features & Benefits

  • The Espire Hub iPad app allows prosthetists to use a wireless bluetooth connection to control the elbow functions, and customise configurations to suit the user’s needs
  • Adjustable counterbalance feature via a dial on the elbow allows the device to balance the weight of the forearm, wrist and terminal device for ease of positioning
  • Supplied with two easily interchangeable 3000mAh batteries and the corresponding charging dock. Each battery can provide a full day of function to the user.
  • Secure, electric lock for optimal control throughout the day, which can be controlled via myo signals or other traditional outputs
  • Available in six finish options: Brown, Caucasian, White, Silver, Jet Black and Carbon Fibre

Technical Information

Size Weight Weight Limit Wrist Size Flexion Angle
Small 966g 11.3kg 45mm -5 - 135°
Standard 986g 11.3kg 50mm -5 - 135°
