Wrists

Quick Disconnect Wrist

Control Strategy
Myoelectric
System
Exoskeletal
Height
20mm-25mm
Wrist Size
40mm-54mm
Suitable For
Paediatric - adult

Key Features

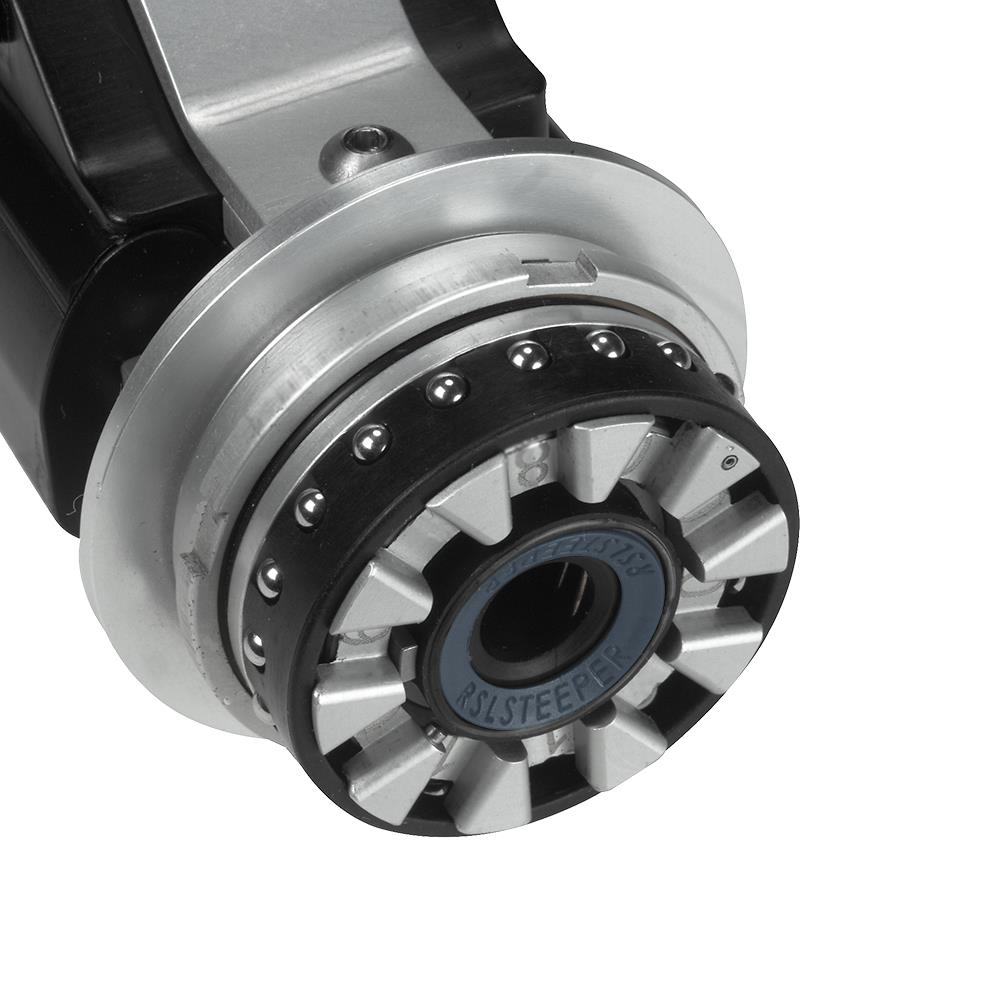

The Quick Disconnect Wrist connects the myoelectric hand to a forearm and custom socket. The forearm can be formed using a blank to fit the lamination ring, which can be easily bonded into place. Inside the laminating ring the coaxial plug is held in place by a coupling piece and allows the myoelectric hand, forearm and accessories to be connected using 2 and 3-pin connectors. These pieces are held in place by plastic grommets and together allow complete rotation and interchanging of the terminal device.

View Catalogue Page

Features & Benefits

  • Quick and easy interchange of terminal devices with compatible wrists
  • Available in 4 sizes
  • Easily assembled and disassembled to access internal forearm through wrist
  • Spare parts available separately
