Structural and Socket Components

C100 Cylindrical Shuttle Lock

16mm - 64mm
Weight Limit
College Park

Key Features

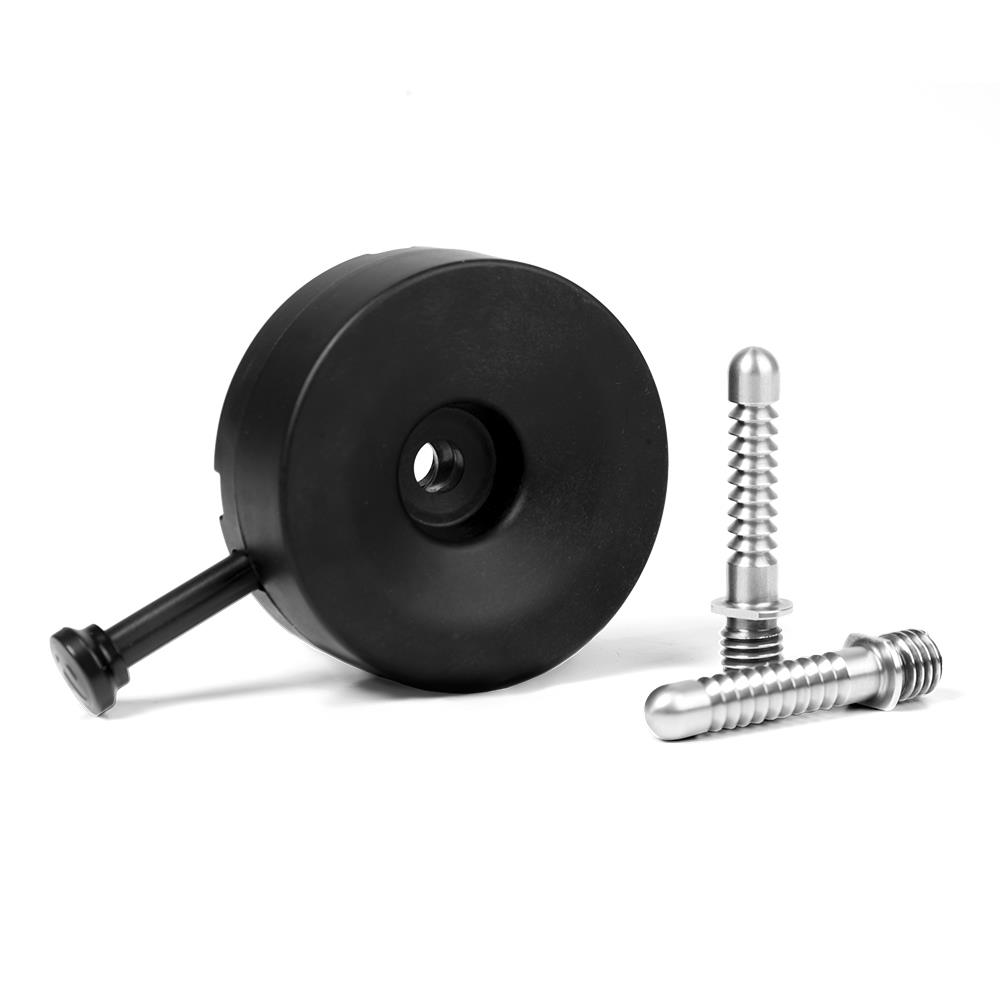

The College Park C100 Cylindrical Shuttle Lock is made from a high-strength durable nylon and used as a modular lock system for lower limb prosthesis users. The C100 is lightweight, provides a secure fit and the release pin can easily be cut to the appropriate length for the prosthesis. The C100 lock is rated to 136kg with a 2-year warranty and comes with two ratchet plunger pins with five different lengths from extra small to extra-large.

College Park’s C100 Fabrication Kit provides a practitioner the ability to form adequate space for the lock to sit in; gives correct placement and formation of the release button hole; and provides guides to drill an industry standard 36mm square 4-hole pattern for endo components. With care, this adapter kit can be used for multiple socket fabrication set-ups. Spares are available as required.

Download Brochure     Technical Manual

View Catalogue Page     CPI Brochure

Features & Benefits

  • Manufactured from high-strength and durable nylon

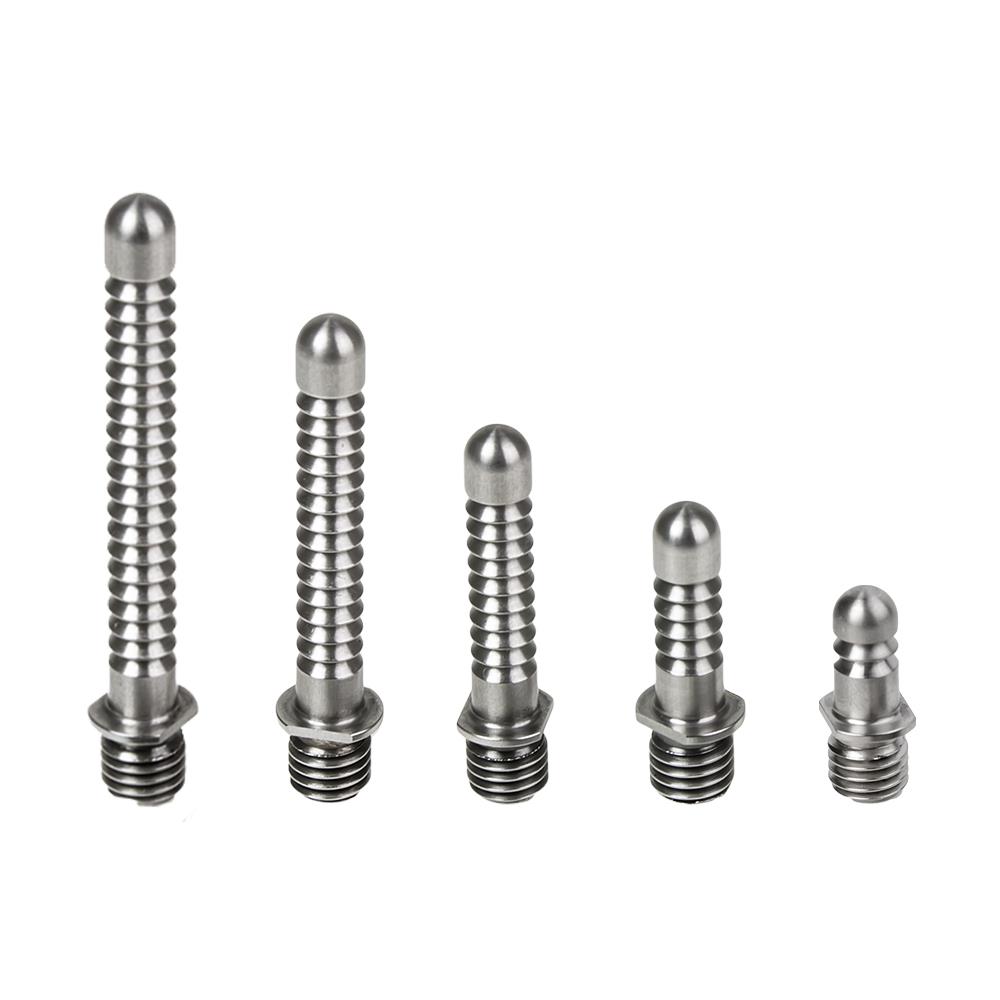

  • Ratchet plunger pins are available in 5 sizes XL, L, STD, S and XS. Please see product brochure for exact measurements
  • C100 Fabrication Kit is available for ease of manufacture with the C100 Shuttle Lock
  • Designed for direct mounting with a 4-hole adapter
  • Lightweight build, weighing 88g with the ratchet pin
