RevoSurface®

RevoSurface®
RevoSurface®
RevoSurface®
View Features
Waterproof
Yes
Weight Limit
135kg
Build Height
24mm
Dial Height
22mm
Download Brochure

Key Features

The RevoSurface Tool Kit not only allows you to pre-build adjustability into check sockets, 3D printed devices, and orthoses, but also to retrofit adjustability into existing sockets. This kit allows the volume of a, previously rigid socket to be manipulated by the user throughout their day, without the need to doff their socket.

For use with a variety of materials, the RevoSurface has been specifically designed to empower patients while withstanding the forces associated with an adjustable socket. The system includes a High Capacity (HC) lace for ultimate user adjustability. The user-friendly Click Reel provides a balance of precise adjustment and power, offering up to 7:1 mechanical advantage.

Download Brochure     Solutions Guide

View Catalogue Page

Features & Benefits

  • Easily add adjustability to prostheses and orthoses
    made from a variety of materials
  • Can be refitted when the socket is updated, making this kit more suitable for early intervention
  • Can be used as a solution when troubleshooting during appointments
  • Retrofit to patients rigid devices, giving them freedom to micro-adjust their fit anytime with the turn of a dial
  • Improve patient acceptability
  • Suited to Orthotic and Prosthetic applications
  • User Weight Limit: 135kg

- RevoSurface® | Tool Kit -



Fix the fit now.

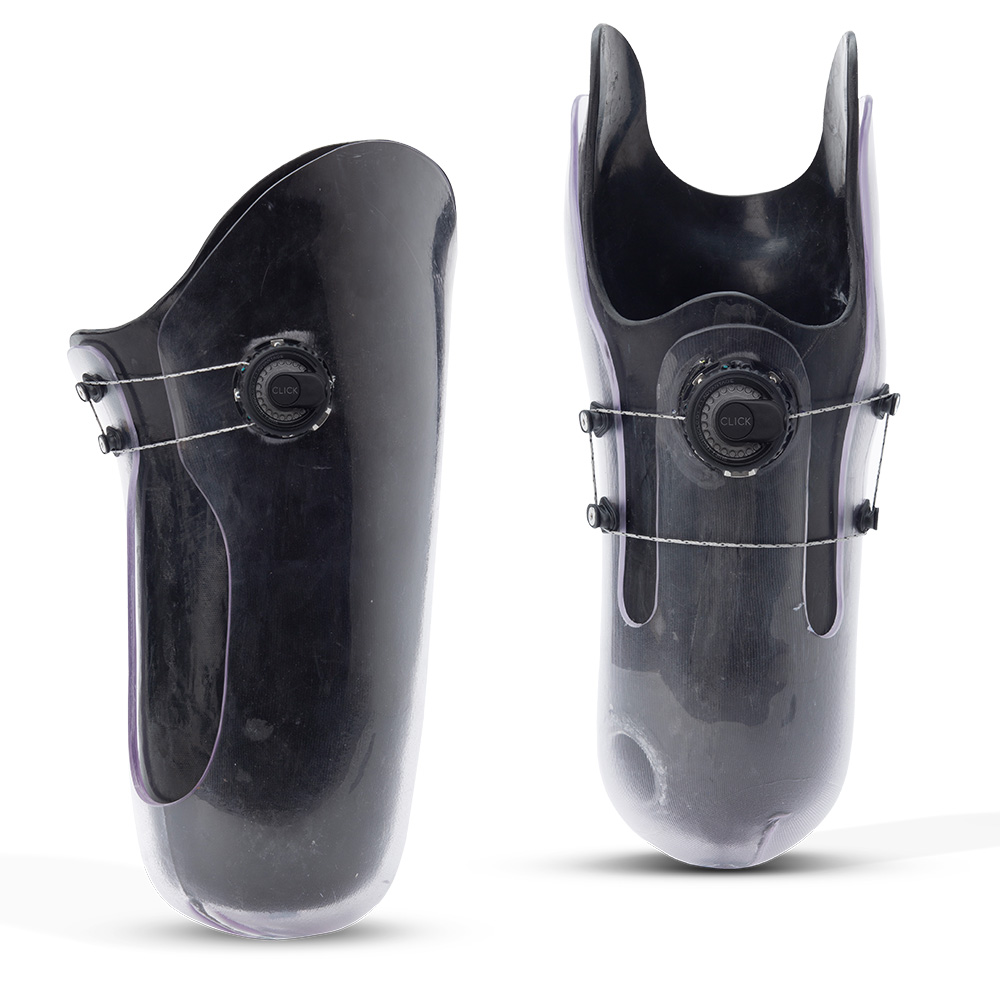

Retrofit your patients rigid devices, and give them the freedom to micro-adjust their fit anytime with the turn of a dial.

Prove it now.

Experiment and modify devices without refabrication. The Tool Kit parts are easy to remove and reuse.

Power in your fingertips.

Click Reel provides a balance of precise adjustment and power, offering up to 7:1 mechanical advantage.

Technical Specification

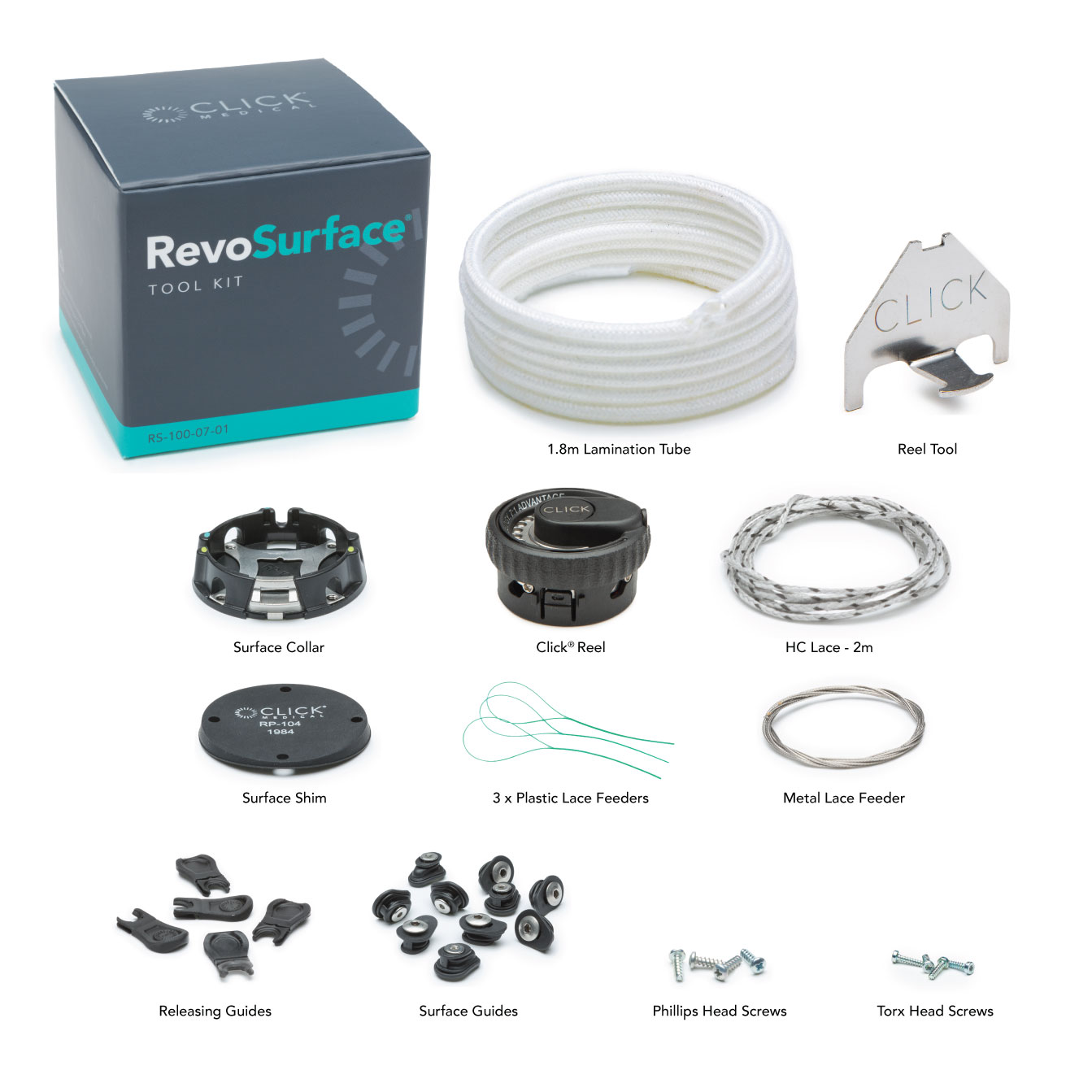

RevoSurface® Tool Kit
(NCMRL-300-07-01)

Build Height of Click® Reel: 14mm visible profile, 24mm total
Reel Diameter: 42mm
Reel Weight: 71g
Collar Diameter: 42mm
Surface Guide Height: 5.5 - 6.5mm
Surface Guide Weight: 1g
Release Handle Weight: 1g
Tube/Sheath Length: 1.8m
Tube Outer Diameter: 3.2mm
Lace: 2m HC (High Capacity) Lace
User Weight Limit: 300 lb/135kg
