Structural and Socket Components

Xtend Connect

Waterproof
Yes
Impact Level
Low Medium and High Impact Scale Icon in BlackMedium
Weight Limit
150kg
Material
Stainless steel

Key Features

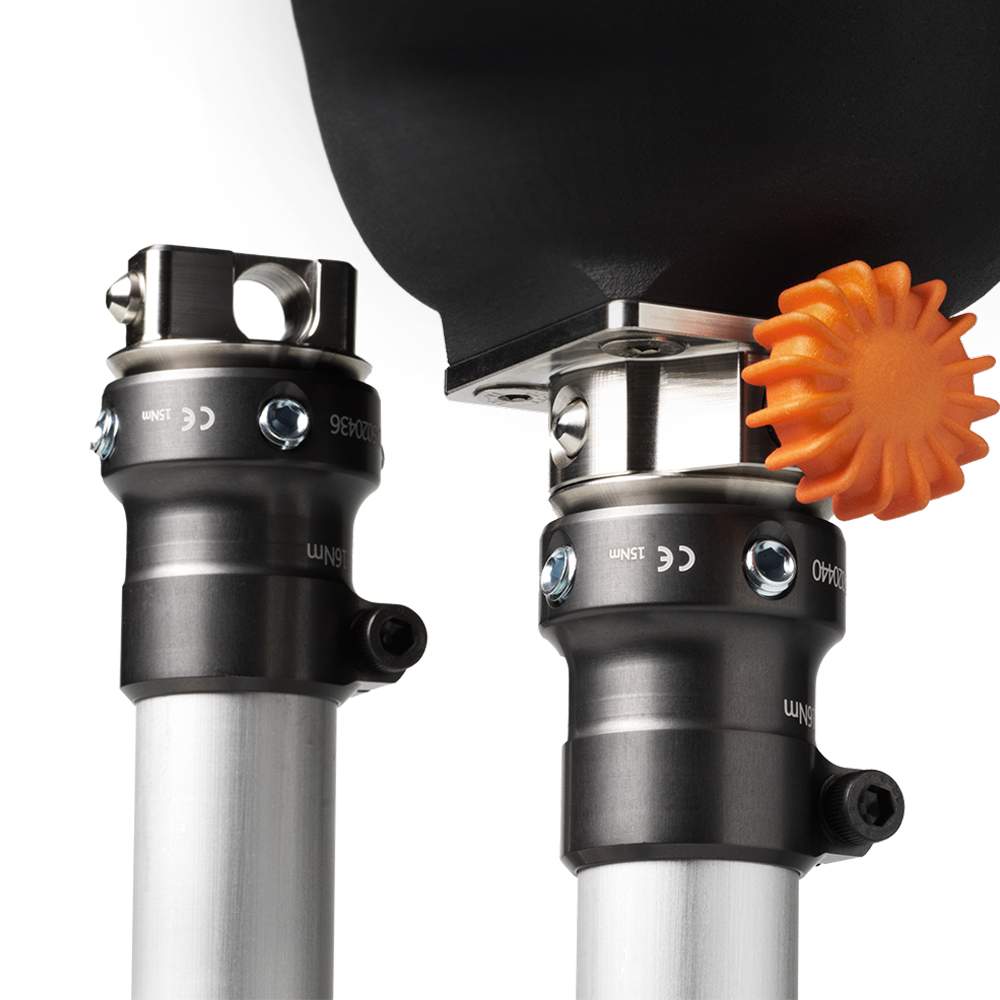

The Xtend Connect can be used to connect different prosthetic components, depending on the lifestyle and usage needs of the user. Users can now wear the same prosthetic socket across multiple limbs. Dependent upon activity, users can simply swap their prosthetic foot, whilst keeping the same socket on.

Suitable for both transtibial and transfemoral applications, the system is ideal for quickly disconnecting the prosthetic foot to make dressing easier, or allowing the same limb to be worn with feet set to varied heel heights - without the need to change footwear.

Download Brochure     View Catalogue Page

Component Build Height Chart

Read CES LX S01

Features & Benefits

  • Accommodates for weights up to 150kg*
  • Quickly exchange feet whilst keeping the same socket, and maintaining optimal alignment of prosthesis
  • Change sockets whilst keeping limb builds intact
  • Designed to be used with industry standard 30mm systems
  • Greater flexibility when dressing - such as removing feet to pull on trousers

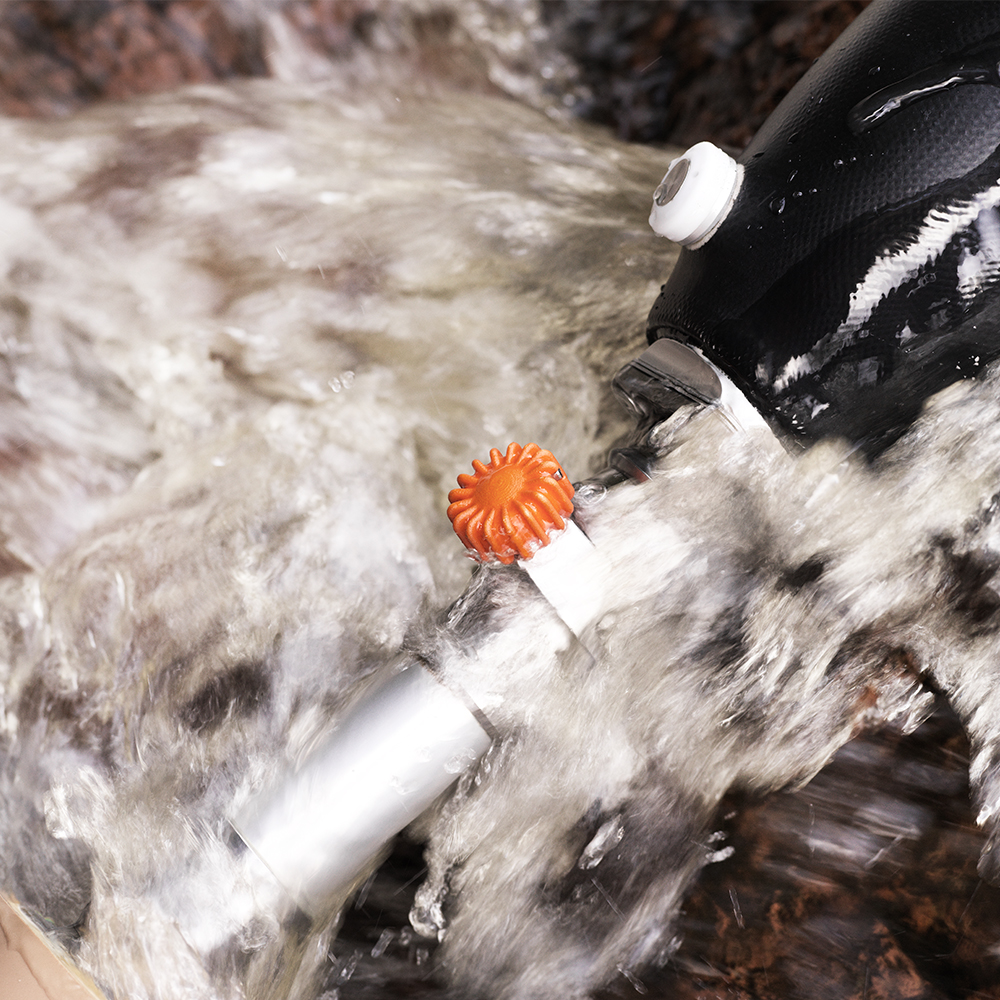

  • Waterproof in fresh water, sea water and chlorinated water with appropriate care**
  • Less baggage – users can pack their activity specific prosthesis without having to pack the entire limb build
  • Safety button ensures secure connection from the first step.
* For activities reaching K4 levels, patient weight is limited at 100kg
** Rinse immediately with fresh water and dry following exposure to salt water or chlorinated water.

Technical Information

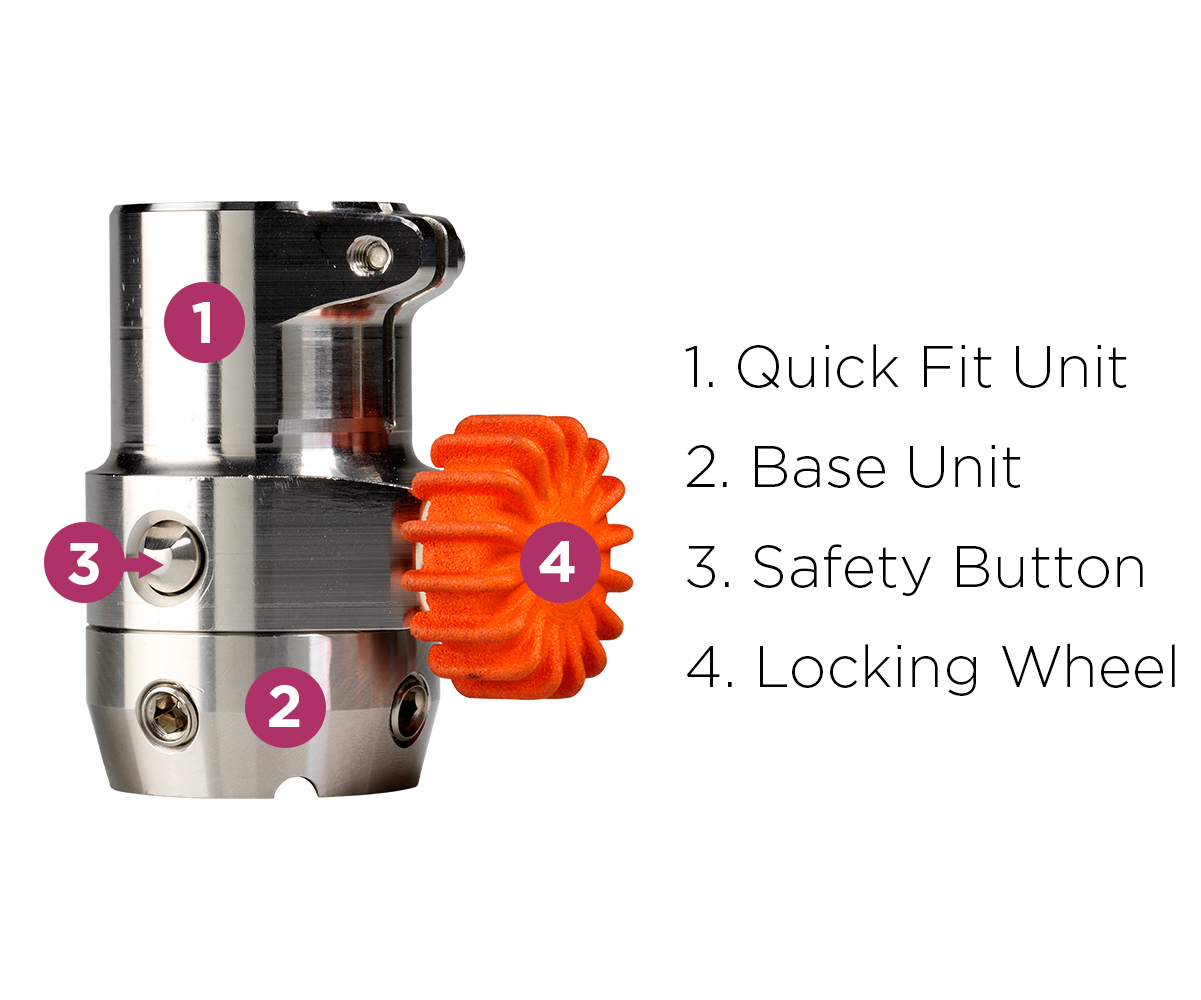

An Xtend Connect set consists of two components:

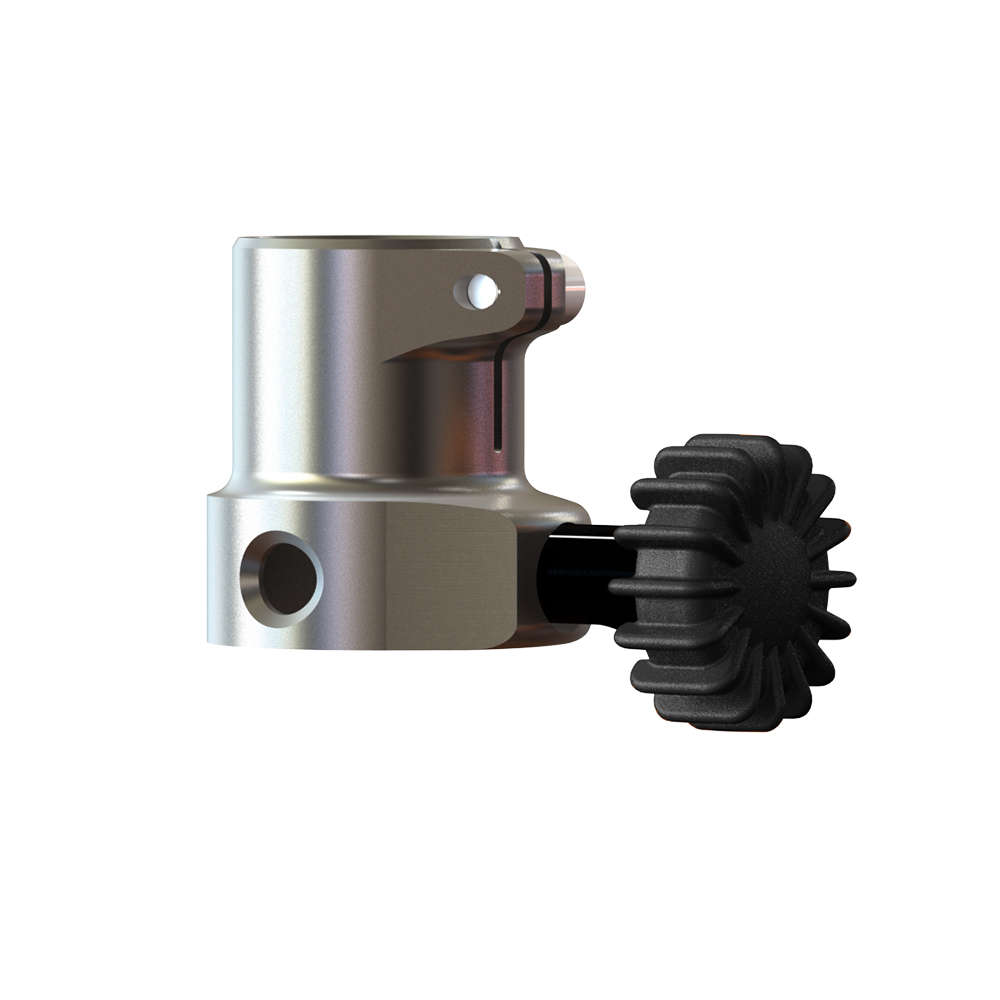

Quick-Fit Connect
A Quick-Fit Connect Unit with an easy-to-use locking wheel and safety button for connecting and
disconnecting.


Base Unit
The Base Units easily fit into the Quick-Fit Connect and are available as a Pyramid or Pyramid Receiver.
