Partial Hand Solutions

Point Endo

Control Strategy
Body-powered
Material
Titanium
Sizing
4 standard sizes
(80, 85, 90 and 95mm)

Key Features

The Point Endo is an ideal option for users seeking a more realistic looking device whilst still benefiting from the high strength load capacity. This passive device features a ratcheting mechanism that enables one-handed use and up to nine unique positions of flexion; simply push the fingertip against an opposing surface such as a leg or table.

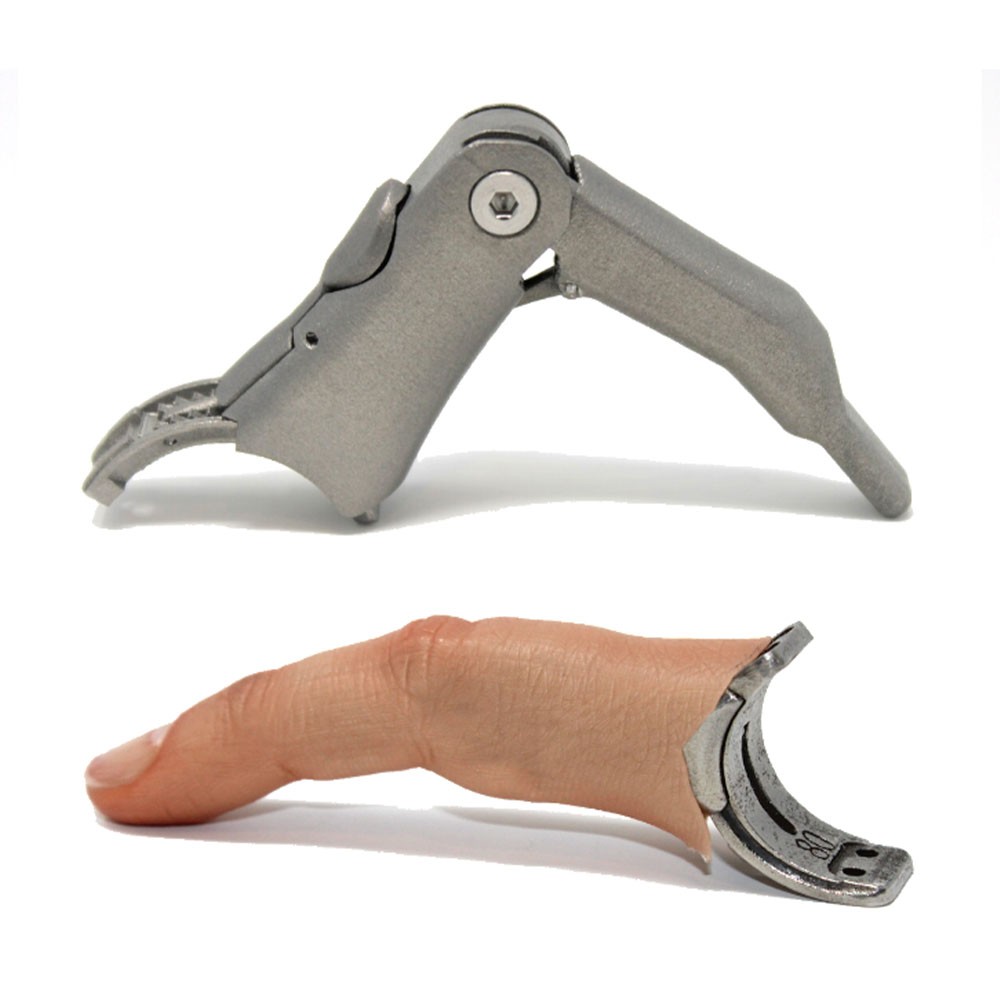

The fused DIP joint allows the Point Endo to be integrated with a High Definition Silicone cover, available to order separately. The device can be mounted alongside three other digits with the use of the Point Endo Mounting Kit.

Instructions for Use          Order Form

Operating Guide          Product Brochure

Features & Benefits

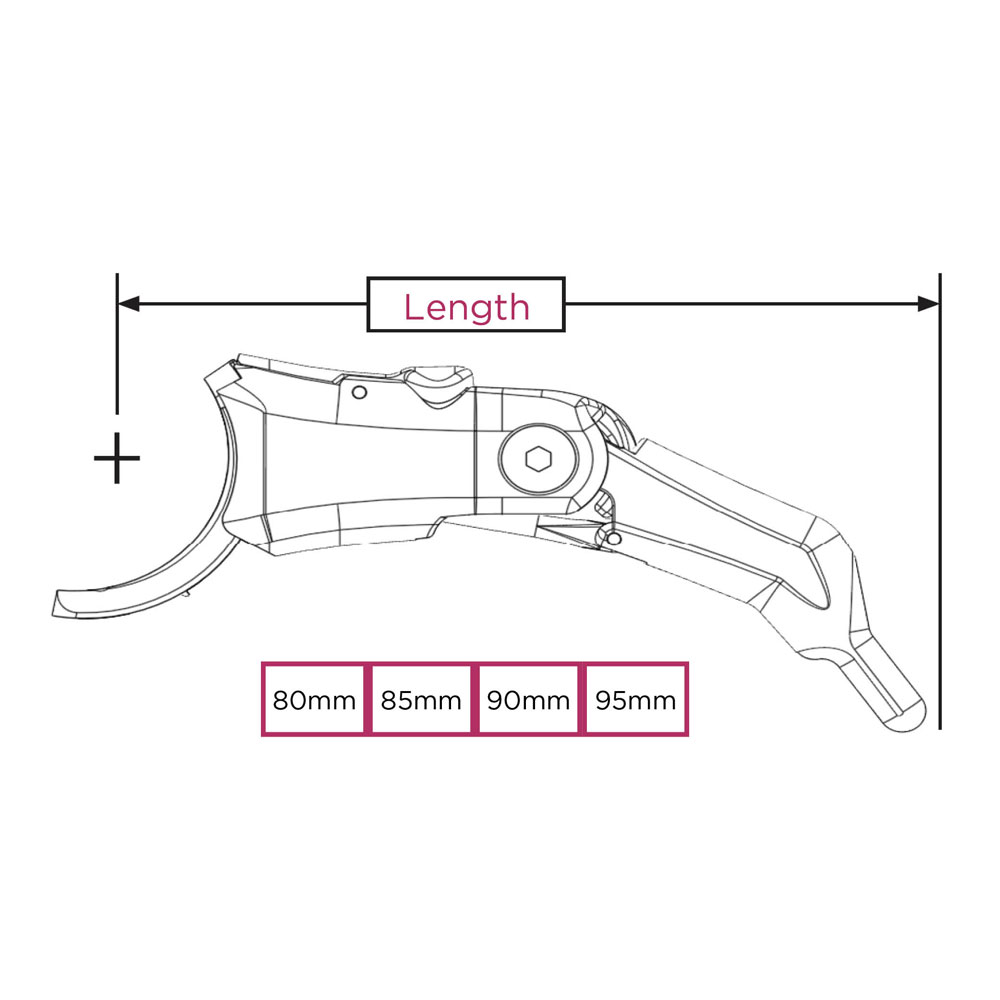

  • 4 standard sizes (80, 85, 90, and 95mm measured from MCP joint centre to fingertip)
  • 9 locking levels of flexion
  • 68kg load capacity
  • One-handed operation
  • Intended for use with a High Definition Silicone cover (supplied separately)

Technical Information


Weight limit 68kg per digit
Material Titanium
Weight of unit 20-24g
Rated pinch grip strength 667 N (150 lbf)
Rated hook grip strength 667 N (150 lbf)
Rated tear out strength 1334 N (300 lbf)
Expected service life* 3 years
Warranty 2 years (1 year additional warranty available to purchase)


*The rated service life as defined is for the Point Endo only. It does not apply to the High Definition Silicone cover.
