Partial Hand Solutions

Point Partial

Control Strategy
Body-powered
Material
Titanium
Size
3 standard sizes (45, 50, and 55mm)

Key Features

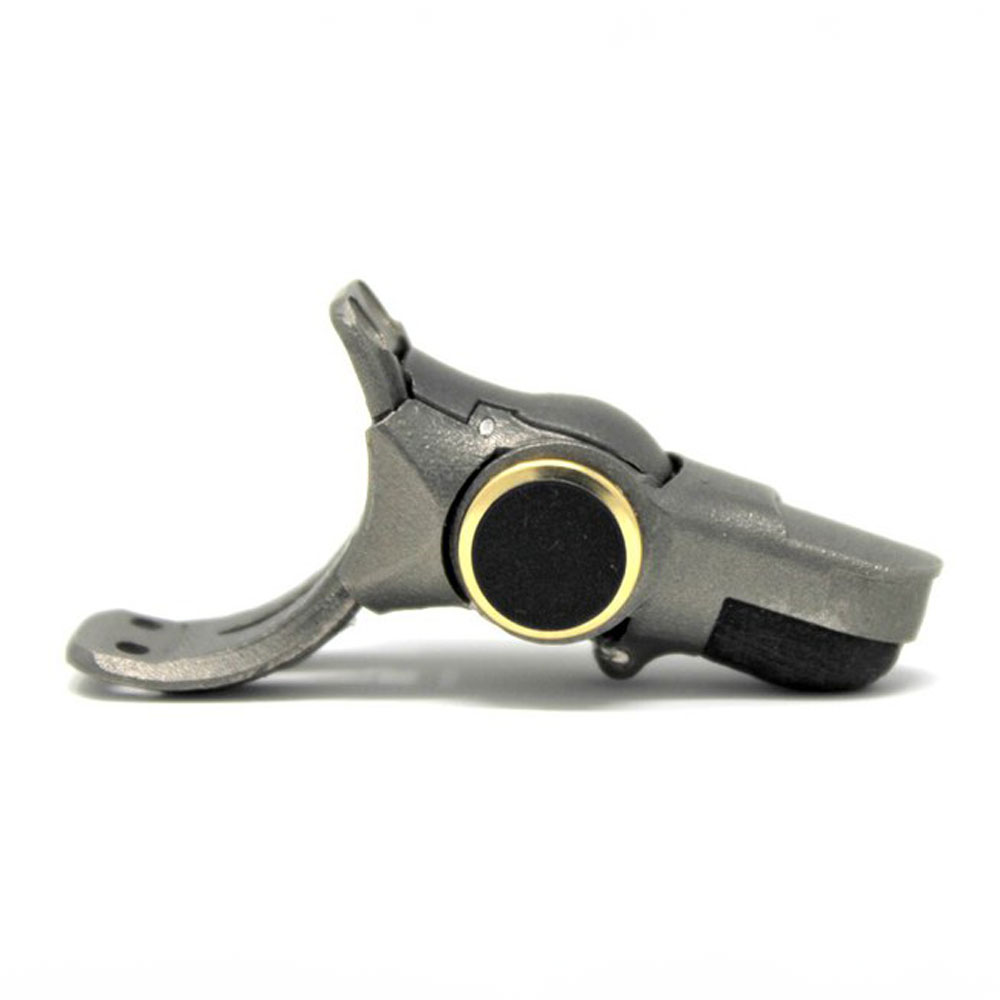

The Point Partial is a mechanical articulating prosthetic partial finger for patients with partial finger amputations of digits 2-5 near the proximal interphalangeal (PIP) joint. It features a ratcheting mechanism which enables seven positions of flexion as well as integrated, compliant, touch screen compatible fingertip pads for enhanced grip.

A semi-hollow titanium construction ensures a high strength-to-weight ratio. The Point Partial is designed for integration into a hard shell with a soft inner liner.

Instructions for Use          Product Brochure

Order Form          Warranty Information

Features & Benefits

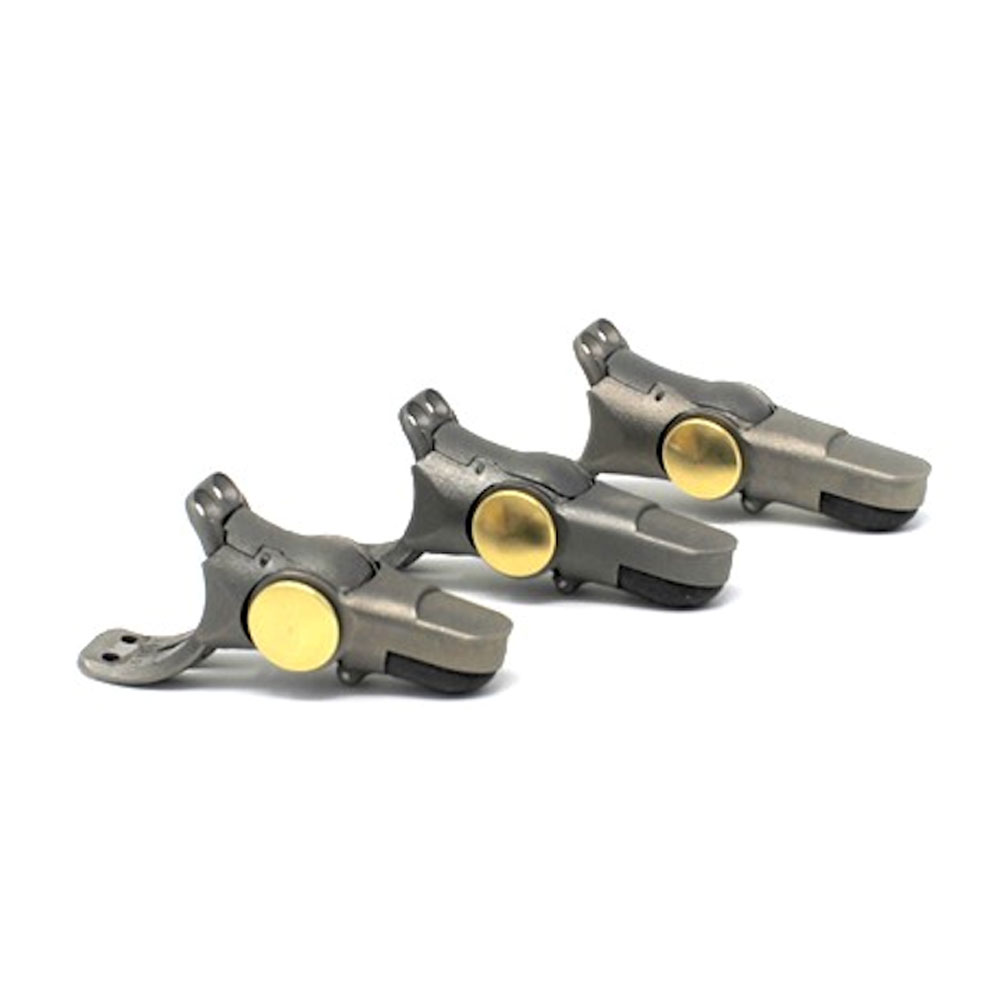

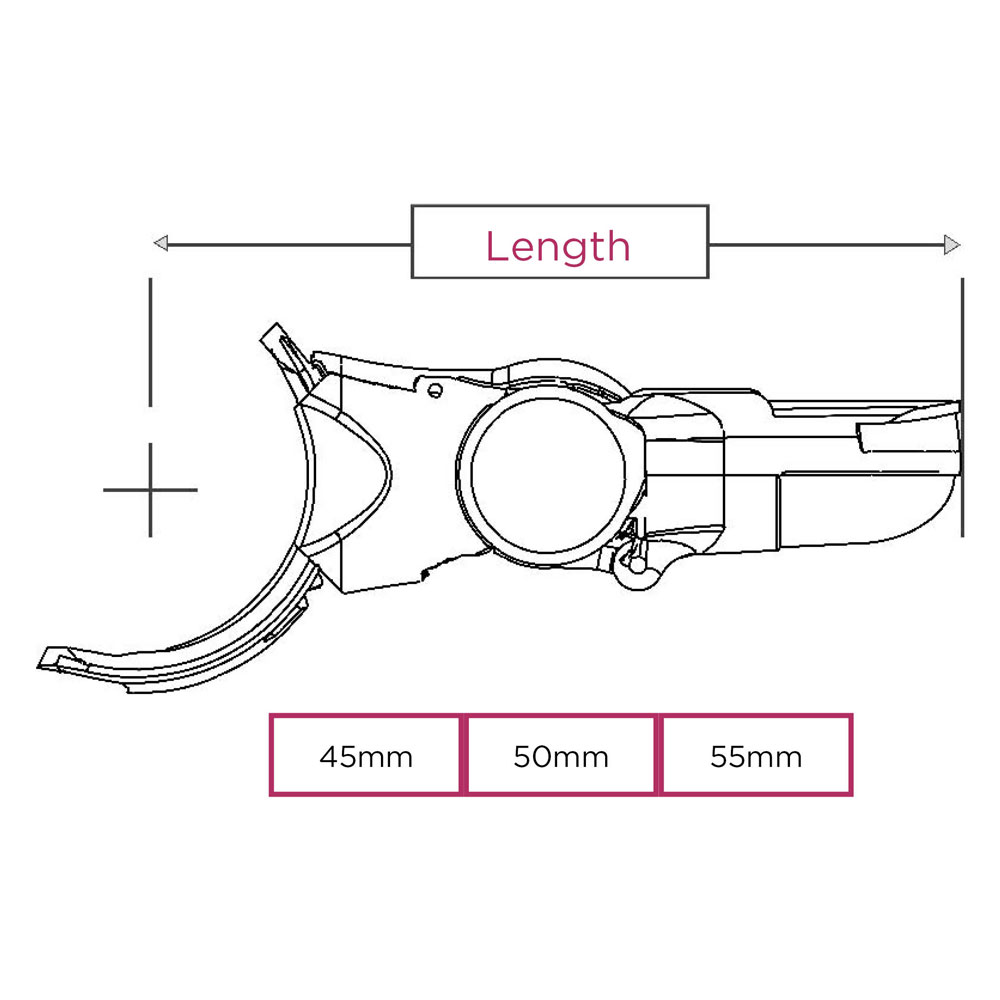

  • 3 standard sizes (45, 50, and 55mm measured from the end of the residual digit to fingertip)
  • 7 locking levels of flexion
  • 68kg load capacity per digit
  • One-handed operation

Technical Information


Weight limit 68kg per digit
Material Titanium
Weight of unit 15-20g
Rated pinch grip strength 667 N (150 lbf)
Rated hook grip strength 667 N (150 lbf)
Rated tear out strength 1334 N (300 lbf)
Expected Service Life 3 years
Warranty 2 years (1 year additional warranty available to purchase)
