Partial Hand Solutions

Point Digit and Point Digit Mini

Control Strategy
Body-powered
Material
3D-Printed Titanium
Sizing

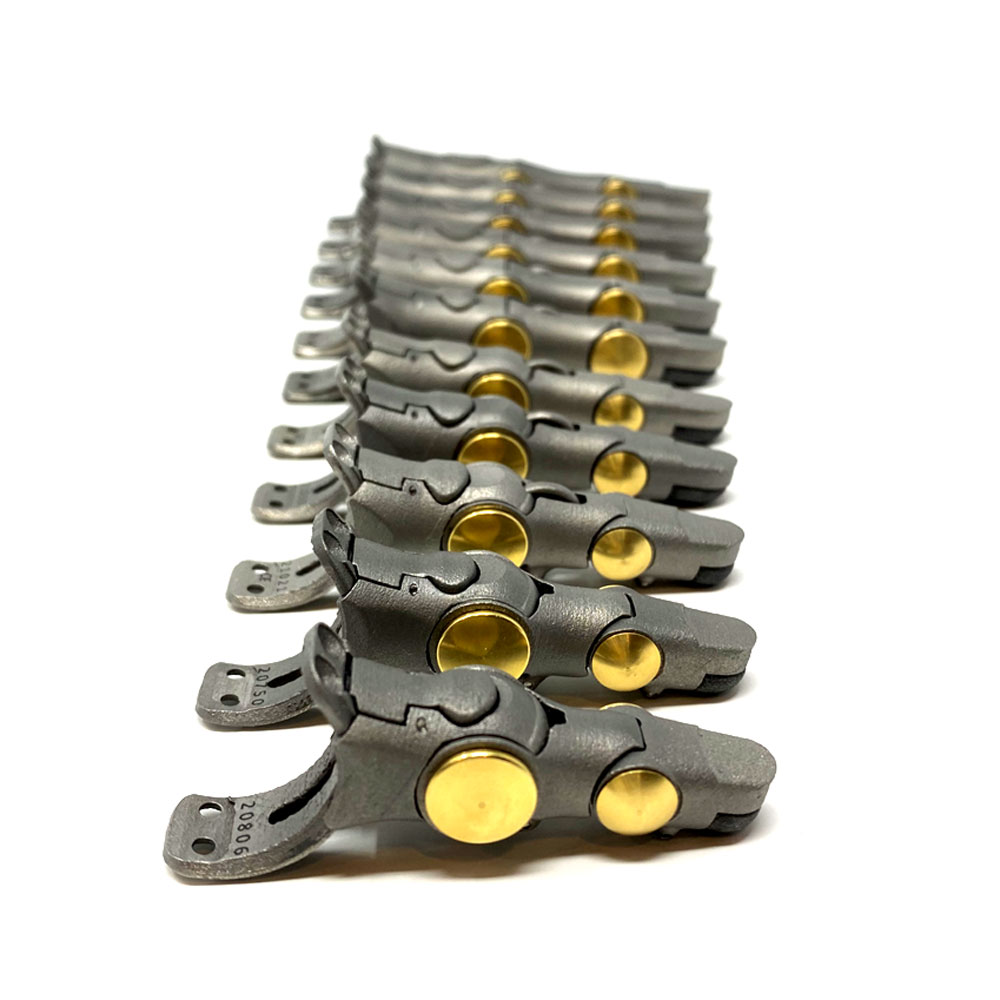

11 standard sizes

Key Features

The Point Digit and Point Digit Mini is a passive mechanical finger for people with partial hand amputation. It features a ratcheting mechanism that enables up to 11 unique positions of flexion and integrated, compliant, touch screen compatible fingertip pads for enhanced grip. The Point Digit and Point Digit Mini are made from titanium for improved strength, with the Mini being ideal for users with smaller hands.

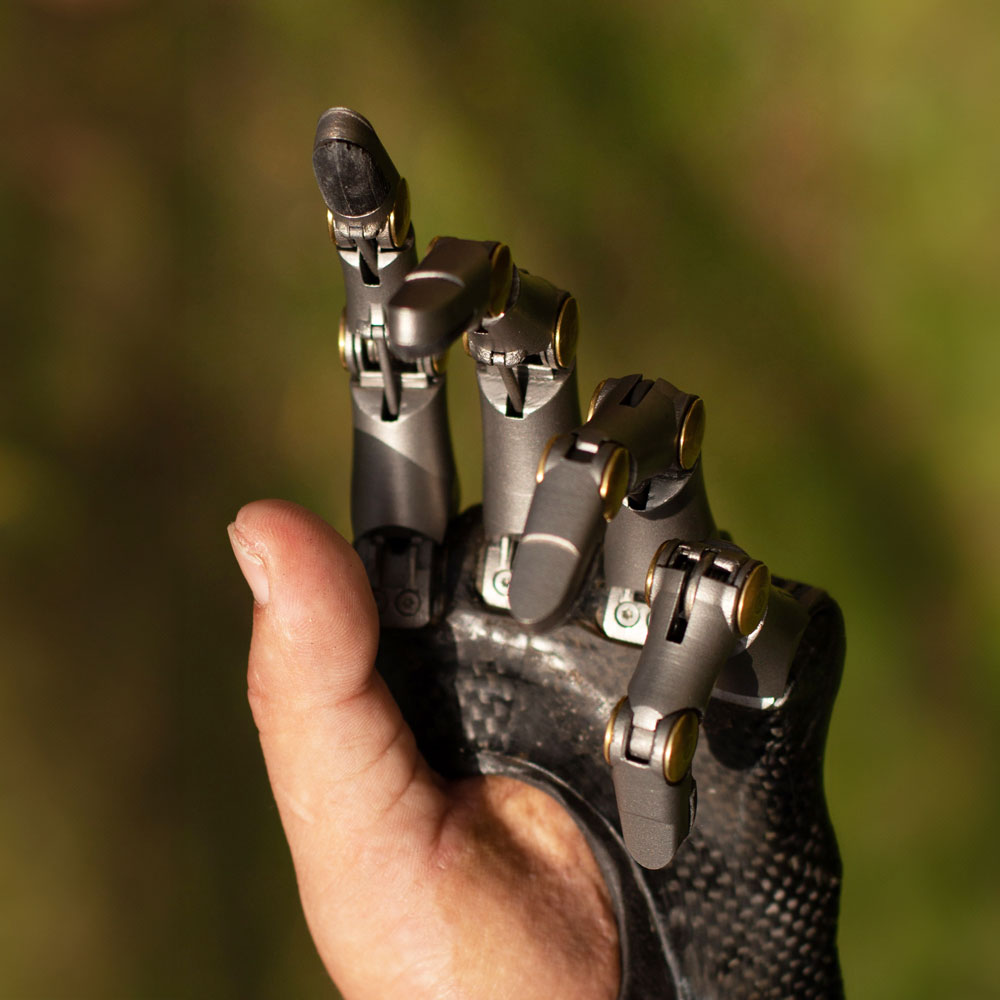

Up to four Point Digits can be integrated into a prosthetic socket using the mounting kit, which includes a mounting bracket, lamination spacers, and mounting hardware.

Instructions for Use          Order Form

Operating Guide          Product Brochure

Warranty Information

Features & Benefits

  • Up to 11 locking levels of flexion

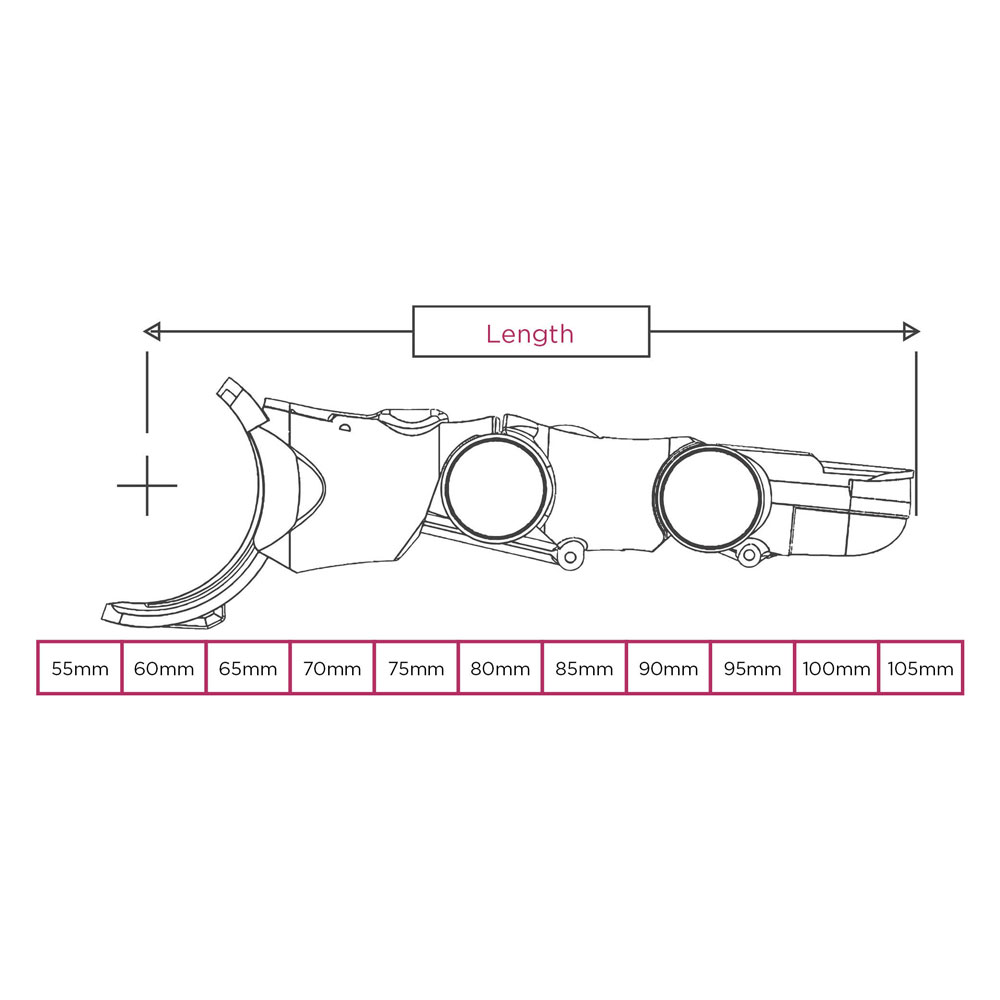

  • Point Digit Mini in 5 standard sizes (55, 60, 65, 70 and 75mm, measured from MCP joint centre to fingertip)
  • Point Digit in 6 standard sizes (80, 85, 90, 95, 100, and 105mm, measured from MCP joint centre to fingertip)
  • One-handed operation
  • Patented ratcheting mechanism enabling unilateral operation with auto spring back
  • 68kg weight limit per digit

Technical Information


Weight limit 68kg per digit
Material 3D-Printed Titanium
Weight of unit 30-36g / 20-28g (mini)
Rated pinch grip strength 667 N (150 lbf)
Rated hook grip strength 667 N (150 lbf)
Rated tear out strength 1334 N (300 lbf)
Expected service life 3 years
Warranty 2 years (1 year additional warranty available to purchase)
