Suspension Systems

Transradial Suspension System

View Features

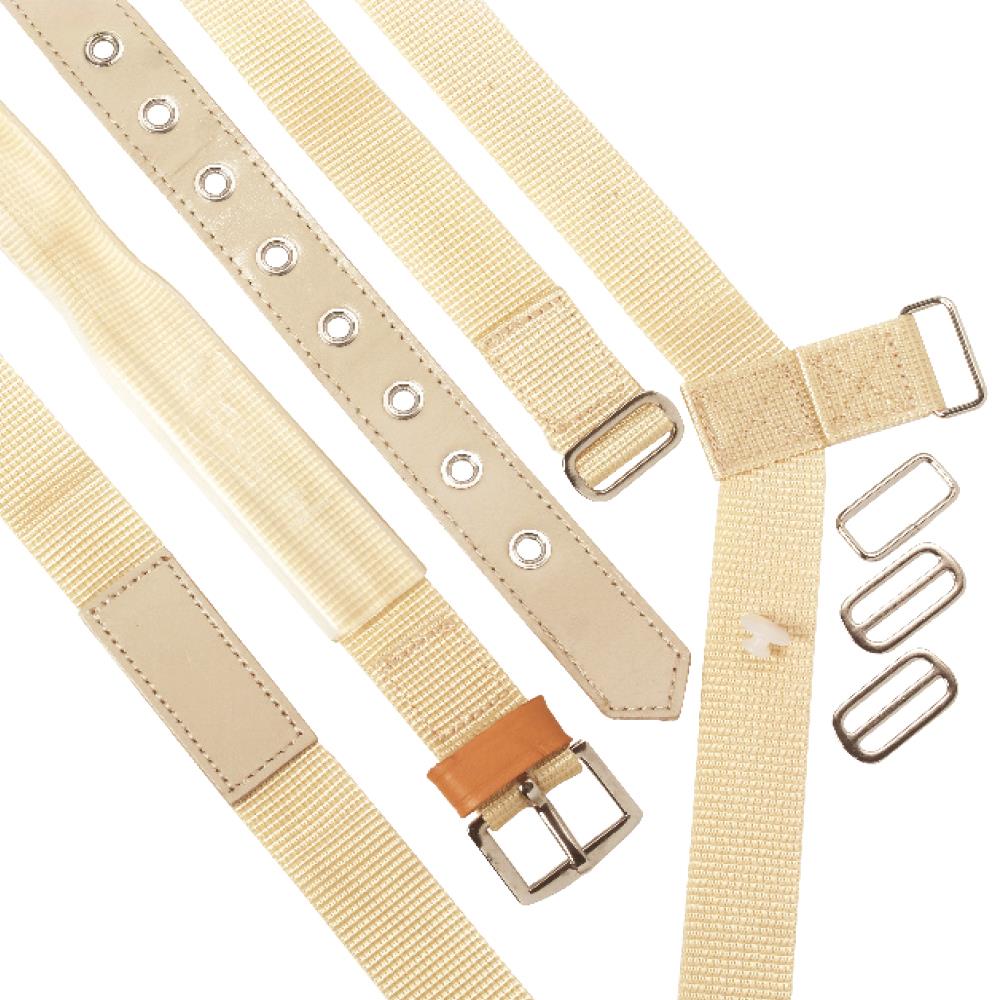

Kit Includes

Nylon webbing, strap and buckle,
2 x tab ends, axillary sheath,
collar stud, slide

Operation Cable Position

Medial

Suspension Link

Adult (25mm)
Paediatric (19mm)

Adjustment

Axilla strap and buckle system, posterior slide
on operation cable strap, and
anterior lock strap

Material

Peach nylon

Enquire Now

Download Brochure

Key Features

The Transradial Suspension Kit offers a customised, adjustable suspension system which can be used in combination with the Steeper Transradial Control Cables. This kit is fully customisable to accommodate a range of socket designs and is adjustable to fulfil varying patient needs, such as carrying heavy loads and working close to the body.

View Catalogue Pages

Features & Benefits

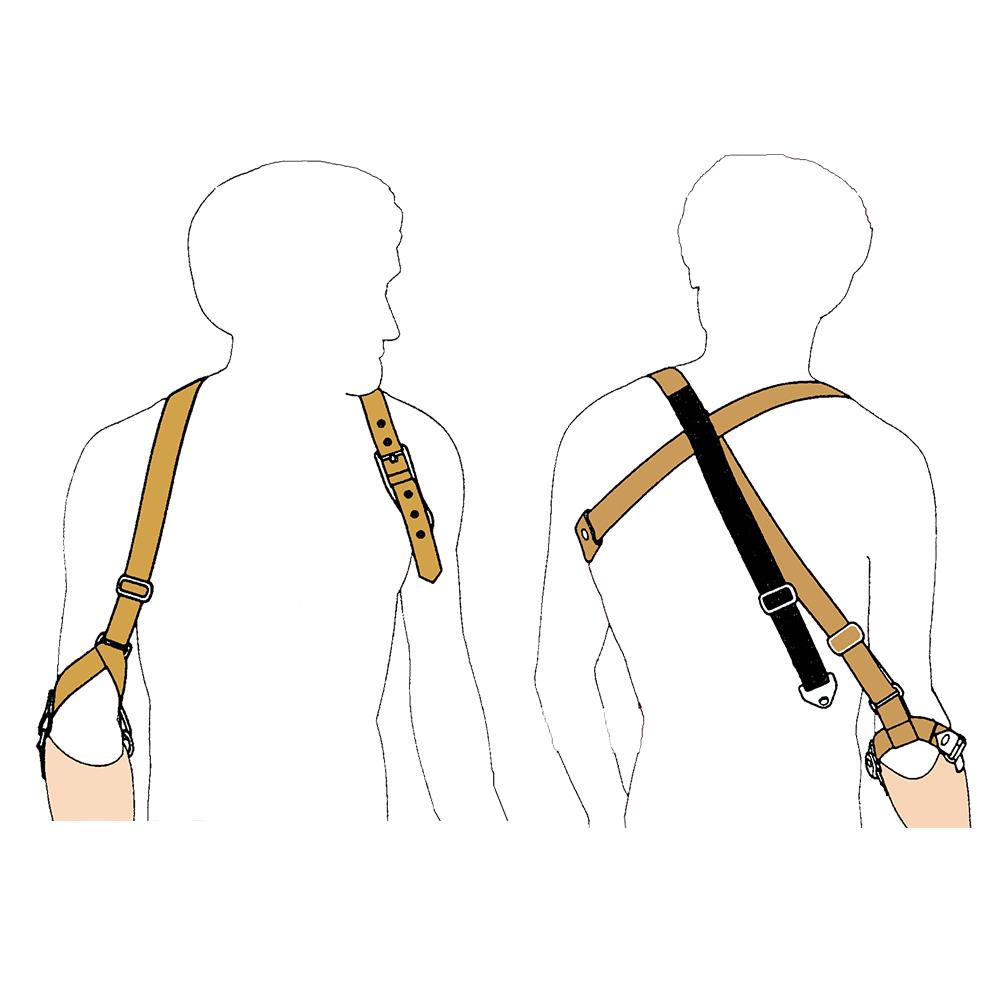

2 point connection to socket, with adjustable anterior/posterior straps for a firm yet comfortable fit
Polymer axillary sheath provides a washable surface and protects the harness from moisture
Adjustable operation strap allows user adjustment to functional envelope
Easily adjusted strap and buckle for user comfort.
Socket Attachement Chapes and control cables sold separately
19mm suspension kit for use with Perlon control cable only
