Terminal Devices

TRS Procuff & Prosthosis

Devices
Pro Cuff Prosthosis

Paediatric Pro Cuff Prosthosis

Pro Cuff DM

Prosthosis Distal Disconnect Wrist System

Prosthosis Adapter

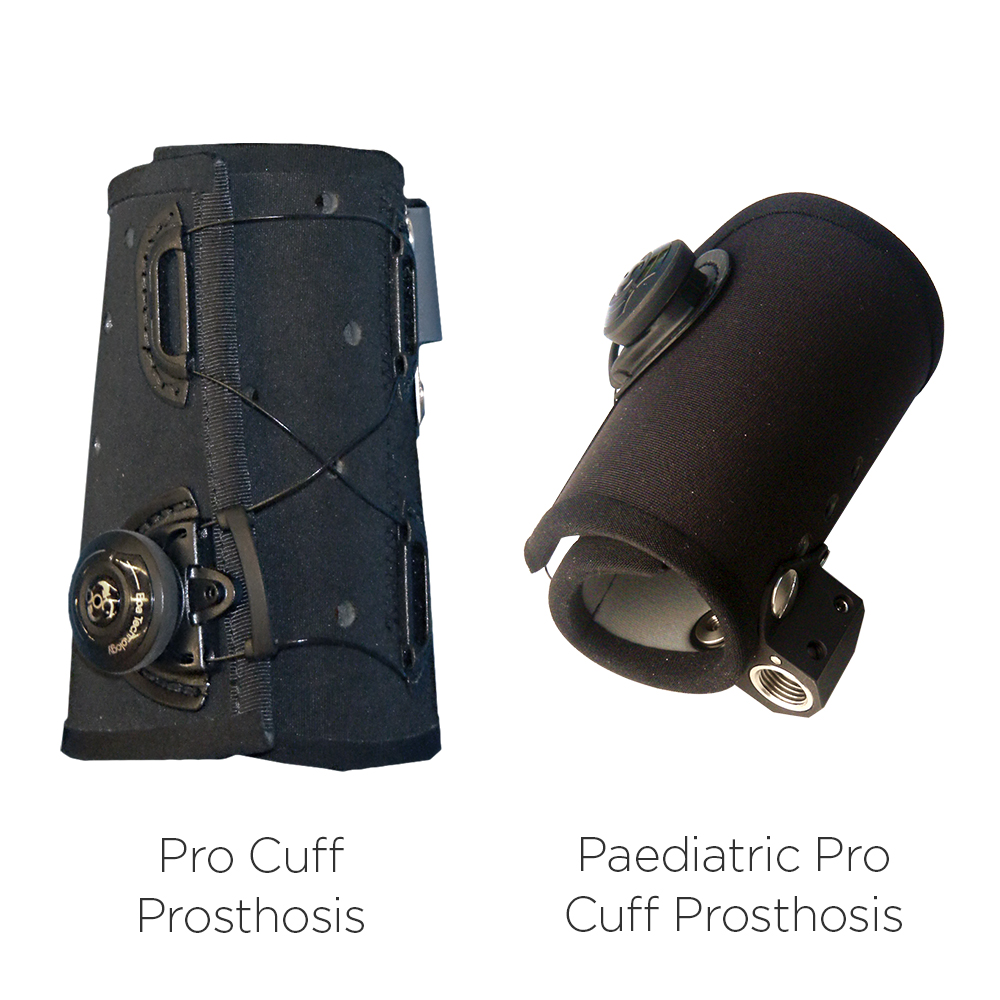

Pro Cuff Prosthosis


Complete and ready to use, the Pro Cuff Prosthosis allows almost all TRS terminal devices to be positioned in an anatomically correct location within minutes, adding little to no additional length to the arm. It utilises a built-in BOA® cable lacing system for tension and closure, to allow for easy adjustability and quick donning/doffing.

Ideal for activities such as golfing, kayaking, swimming and ball/bat sports.

View Ordering Information



Features

  • Stainless steel terminal device disconnect bracket with multiple mounting options
  • Thermomouldable cuff
  • ½” x 20TPI
  • Order extra Adapter Inserts (below) for quick and easy interchange of terminal devices


Application

  • Easily modified and adjustable, the universal size will fit most users
  • Suitable for those with a temporary or permanent hand injury, paralysis, partial hand absence or wrist disarticulation
  • Used to restore gripping dexterity when using the Pro Cuff with an appropriate terminal device

Paediatric Pro Cuff Prosthosis


The Paediatric Pro Cuff Prosthosis is a ready-to-use cuff for children, which uses the BOA® cable closure system for adjustability to accommodate a wide range of forearm circumferences. It can be used with most TRS terminal devices with minimal bracket or device modification.

View Ordering Information



Features

  • Constructed using reformable low temperature plastic foam laminates
  • Features an aircraft aluminium ‘disconnect’ bracket with stainless steel disconnect adapter
  • 1/2" x 20TPI internal thread on disconnect insert


Application

  • Infants and children up to smaller-framed adults
  • Ideal for activity specific activities with the appropriate terminal device

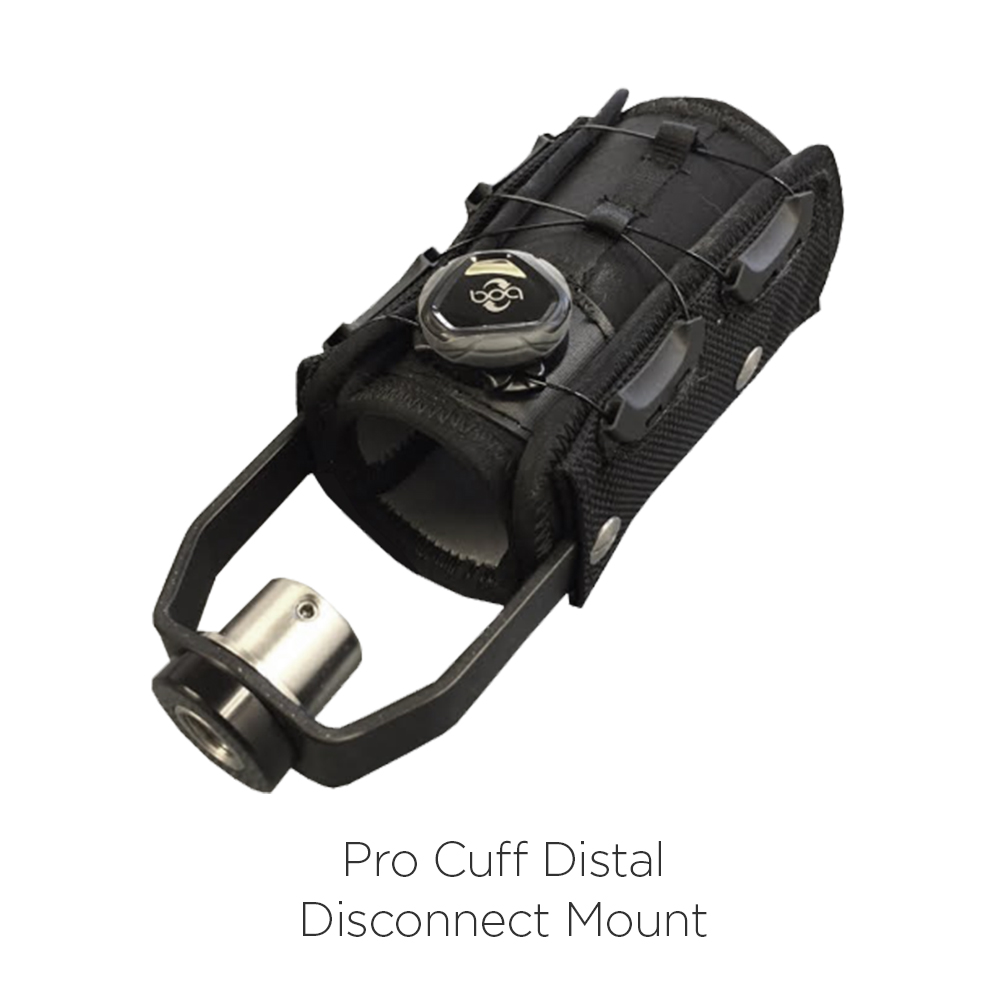

Pro Cuff DM


The Pro Cuff Distal Mount is a distal ‘inline’ terminal device mounting system for improved device control and balance. It is a ready to finish and fit system, which has an excess of two inches for length positioning adjustment to suit individual requirements.

The design is based around limb capture and retention, and easy donning and doffing. This is provided by the AFO ‘liftoff’ tongue, dual hook-and-loop closure systems and the built-in BOA® cable closure and tension technology.

View Ordering Information



Features

  • Includes adjustable position-length Prosthosis Distal Disconnect Wrist System
  • Constructed using re-formable, low temperature plastic foam laminates
  • Four Chicago-style threaded rivets included for securing bracket onto prosthosis in desired position


Application

  • Wrist disarticulation and specific partial hand absences

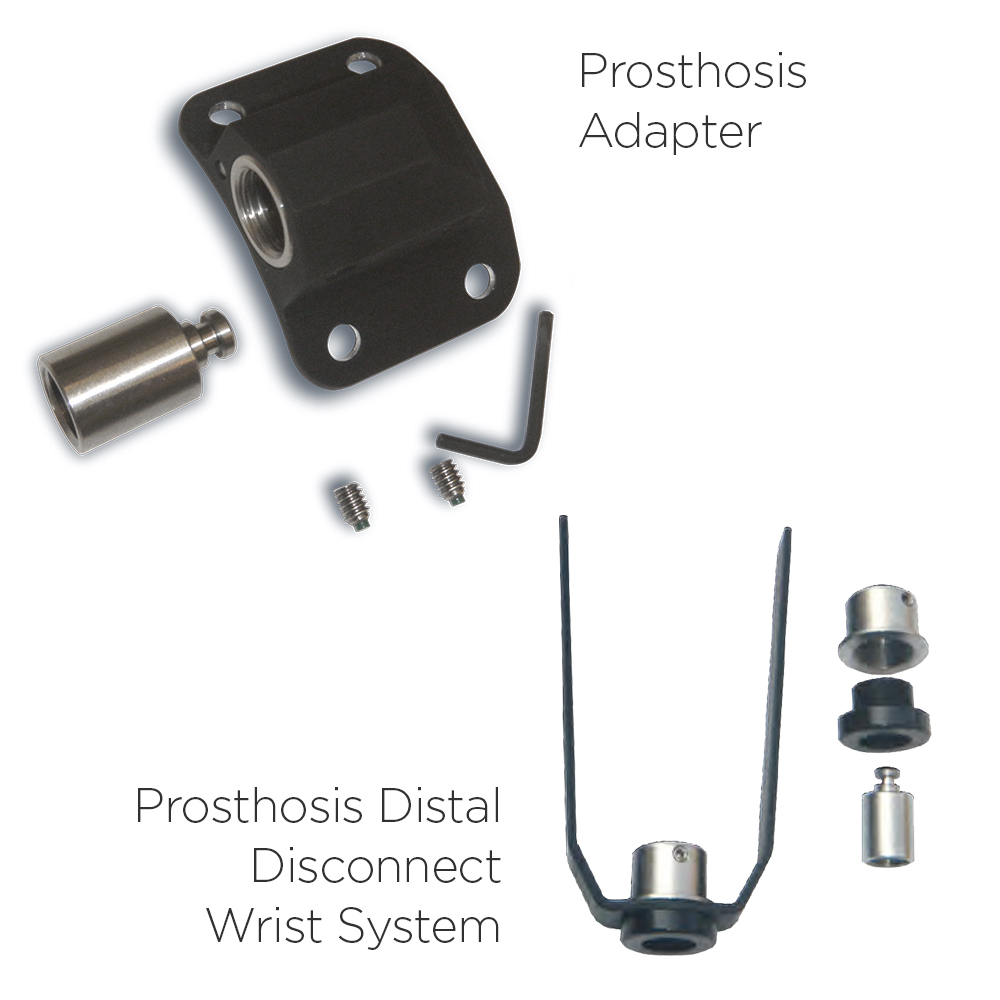

Prosthosis Distal Disconnect Wrist System


The Distal Disconnect Wrist System is a high-strength frame which allows for more proximal terminal device mounting. It is an integral, compact disconnect wrist system which creates an ‘in-line’ mounting design for more natural control of activity specific accessories.

Constructed using stainless steel and anodised aluminium, it is ready to drill and mount into a prosthosis.

View Ordering Information




Prosthosis Adapter


A high-strength aluminium prosthosis adapter, with a stainless steel insert included. This is a rapid disconnect system which uses dual set screws to retain insert and adjust frictional rotation with the Pro Cuff Systems. Comes with a magnetically-stored Allen key for convenience.

View Ordering Information
