Terminal Devices

TRS Cycling Terminal Devices

Devices
Criterium Bicycle Handlebar Adapters

Dual Bike Brake Lever

Ener-Joint

Mountain Master Mountain Bike

Criterium Bicycle Handlebar Adapters


Both adult models, the Criterium and Criterium Pivot, provide an offset centreline duplicating the normal palm grasping position for improved biomechanics when cycling.

The Criterium is the original version, which has softer, more flexible properties providing easier application.

The Pivot version is made up of two pieces, allowing for much greater angulation and arm torque. The adjustable friction pivot mechanism results in higher performance, and is more difficult to release from the bars.

The Criterium Pivot Short is for children and has a wedge design. It features integral radial, and an ulnar pivoting action that provides greater versatility, control and safety for the rider.

View Ordering Information



Features

  • To change the friction and force required to engage and disengage the Criteriums, the handlebars can be taped with various material
  • All models snap/pull on and off 1” (2.54cm) diameter bicycle handlebars
  • All models fit right or left
  • ½” x 20TPI (M12 available, order conversion part number: NCUSTM)


Application

  • 70 durometer is recommended for children and less aggressive riders. Load required to directly release is approx. half that of the 85 durometer
  • 85 durometer is recommended for more aggressive riders
  • The Criterium Pivot Short model is for children aged three years and older. It is recommended that older children use the Firm version

Ener-Joint


Compact and self-contained, the Ener-Joint is designed to be mounted mimicking the centre of the anatomical elbow. The rapid and reliable bicycle hub-style locking lever provides a quick release mechanism, providing enhanced control for the user. Elastomeric energy storing and release allows this elbow to provide progressive resistance throughout flexion/extension, whilst the energy absorbing isolation module provides constant shock absorption.

Designed for adult-grade rugged activities, the Ener-Joint is particularly suitable for the following activities: mountain biking, ATV riding, off-road motorcycle riding, rowing, and kayaking.

View Ordering Information



Features

  • ½” x 20TPI for proximal and distal connection (M12 available, order conversion part number: NCUSTM)
  • Endoskeletal design
  • Custom attachment couplings are available
  • Polyurethane core isolates external shock forces under both flexion and extension
  • Variety of pre-positionable, lockable angular orientations


Application

  • For adults undertaking rugged activities and loads, but can be used by active young adults

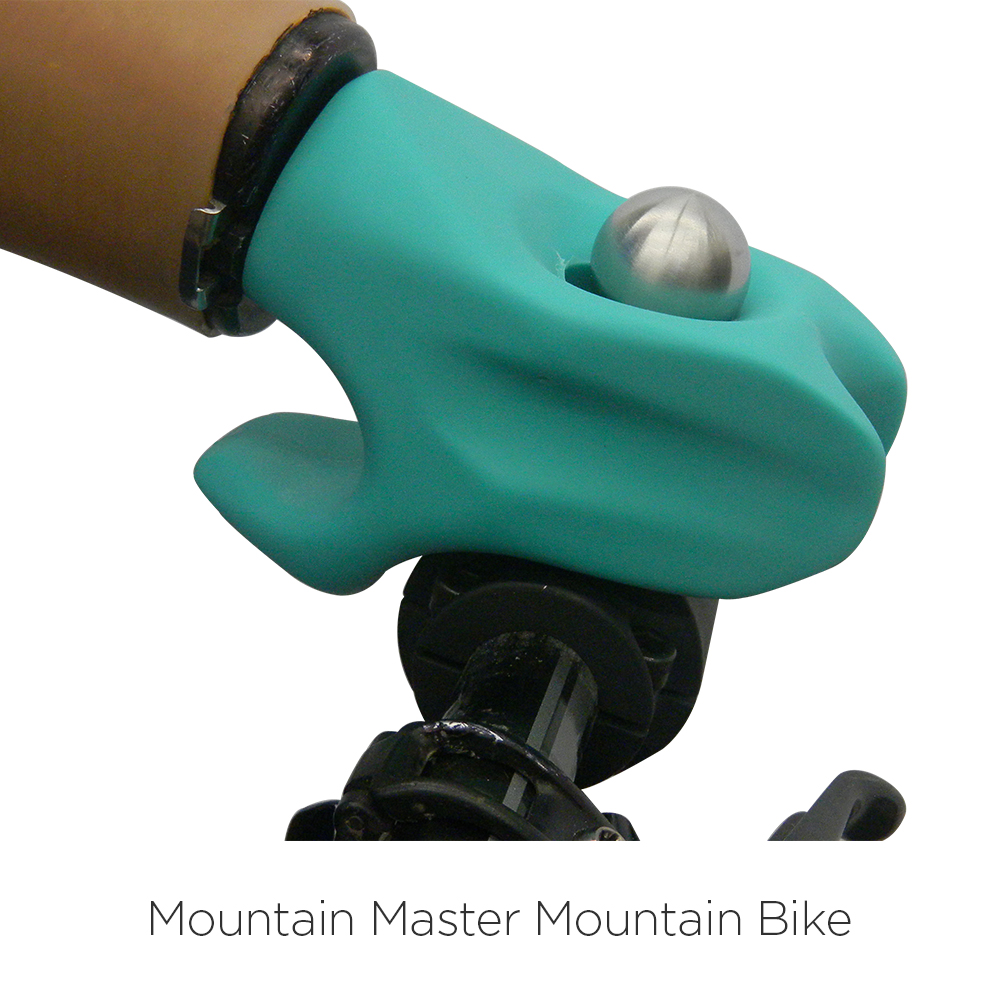

Mountain Master Mountain Bike


The Mountain Master Mountain Bike terminal device provides the user with excellent stability and secure control on their handlebars. It features a stainless steel ball-pedestal mount with machined aluminium mounting hub and a flexible, strong polyurethane body with a shock absorbing design.

The quick connect and release system means the terminal device is not locked to handlebars providing improved control for the rider.

View Ordering Information



Features

  • Passive contoured features provide bike frame carrying capability
  • Fits all standard 7/8” (2.2cm) diameter bars
  • Snap-on and lift-off function
  • ½” x 20TPI (M12 available, order conversion part number: NCUSTM)
