Myoelectric Accessories

S-Charge System

Cell Dimensions
128mm x 42mm x 3.5mm
Battery weight
(550mAh per cell)
Power Rating
7.0V - 8.4V
5.0A peak current
Display Dimensions
50mm x 20mm x 7mm
Lithium polymer

Key Features

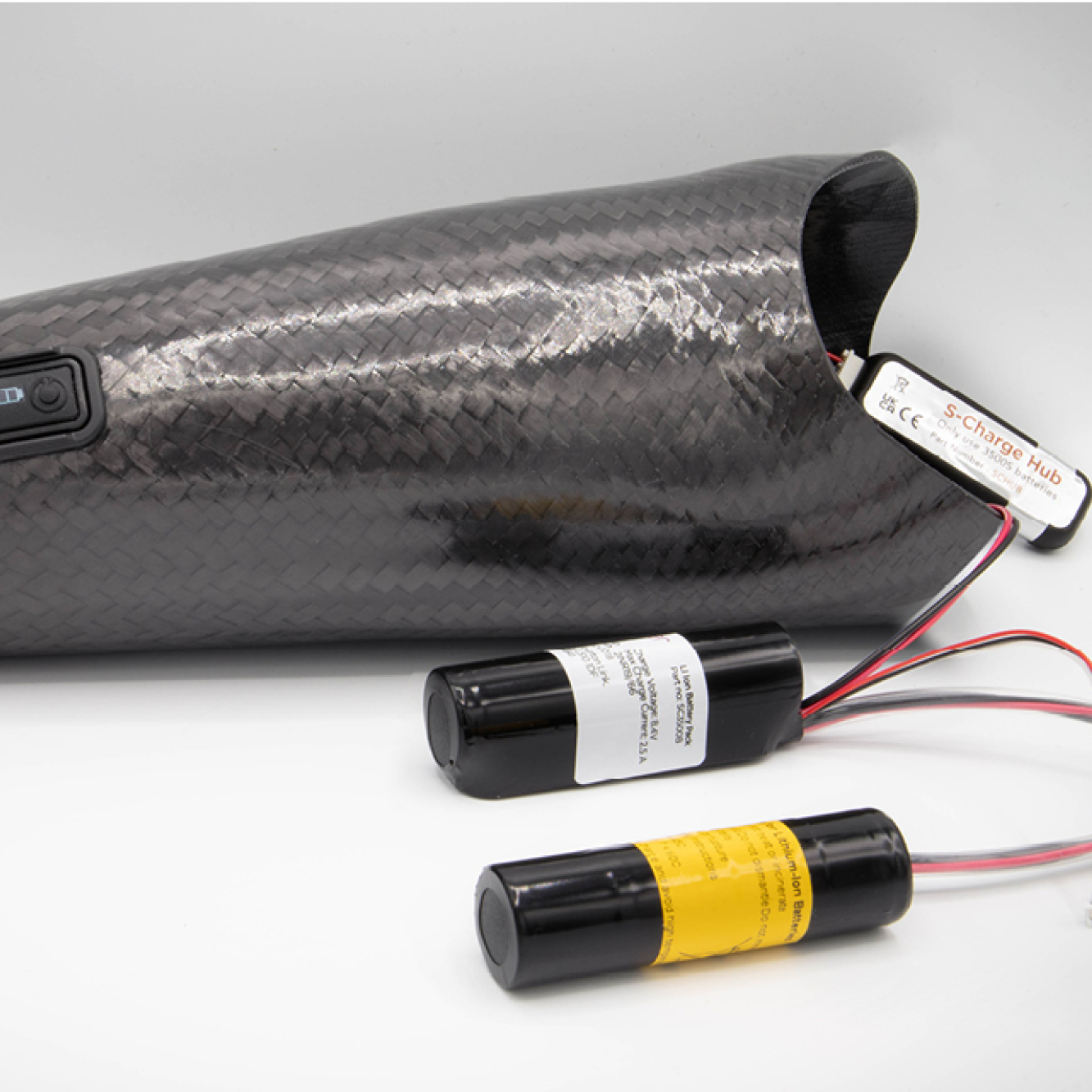

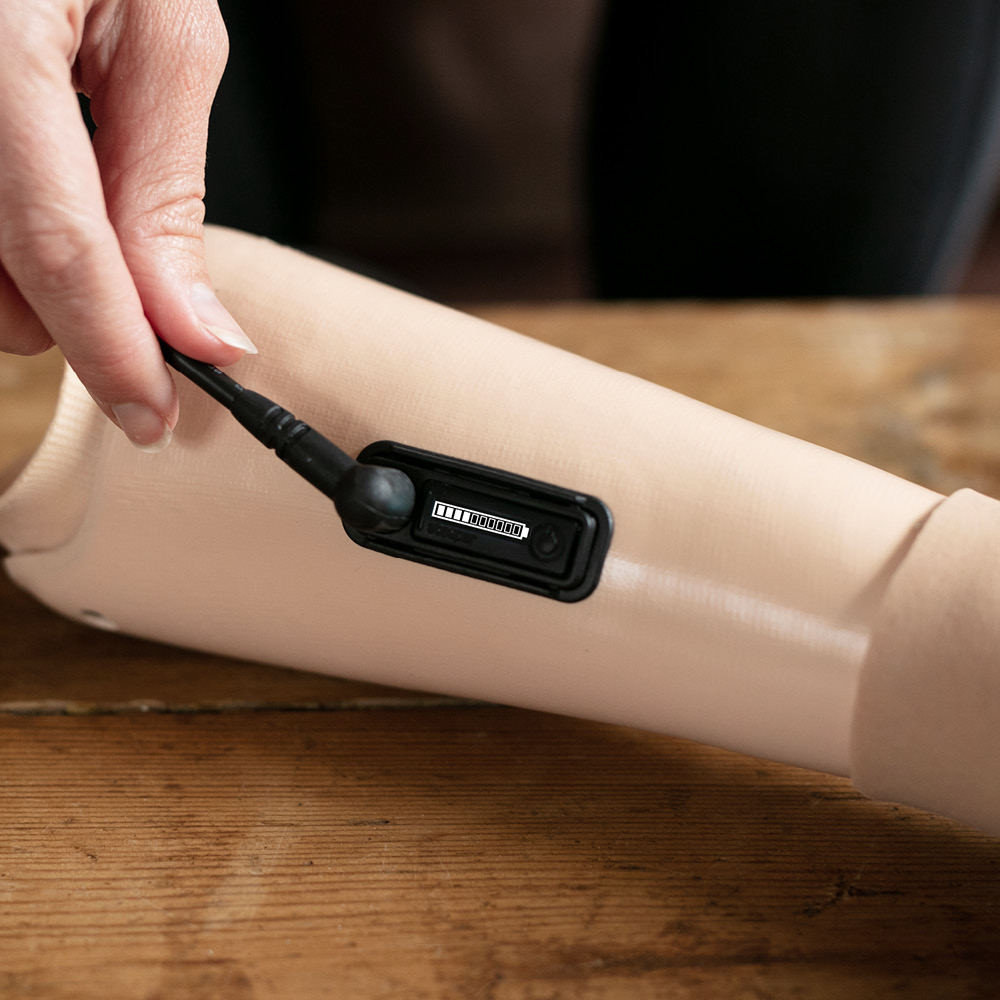

The S-Charge System is a user friendly internal battery system with an OLED display and a magnetic charger, that is fitted into a prosthetic forearm. This allows the user to easily activate, deactivate and charge their prosthesis whilst confidently monitoring the power status during use through the display of real-time battery life icons.

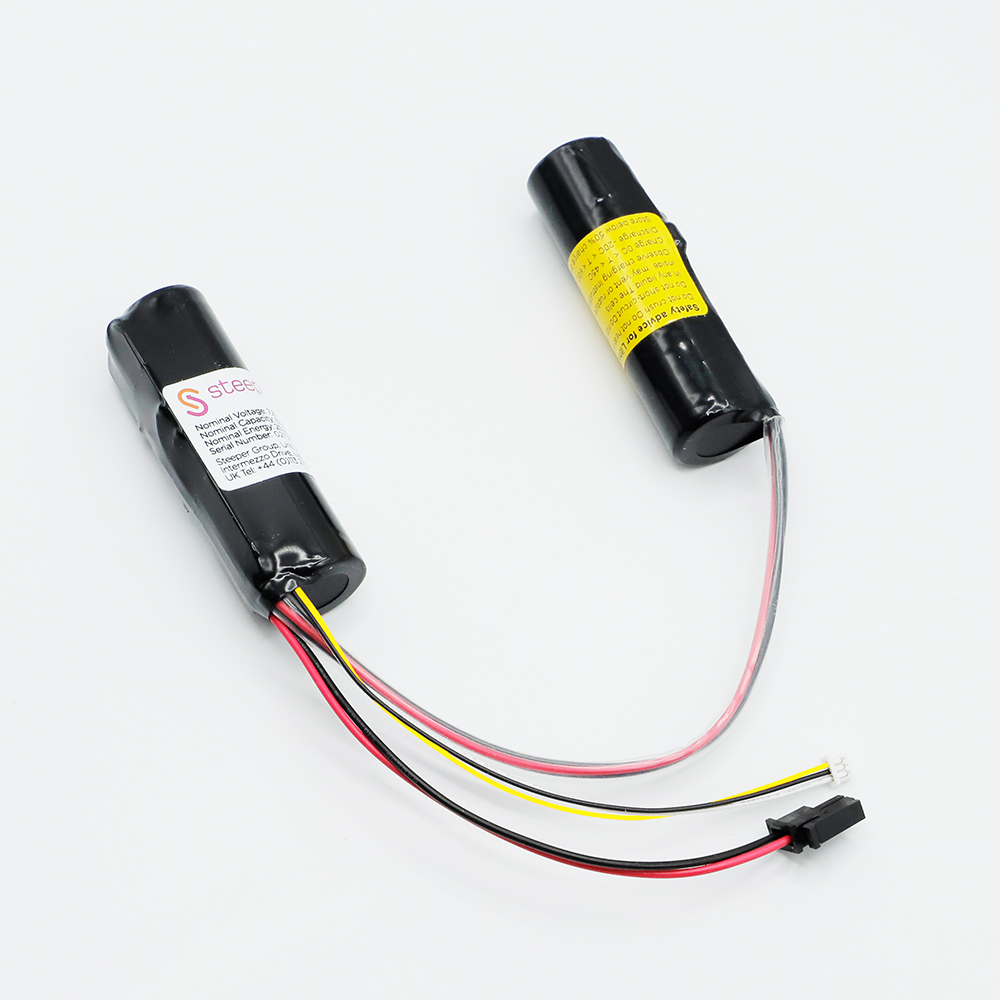

S-Cell batteries provide up to 1100, 1650 or 2200mAh to the terminal device, as 2, 3 or 4 batteries can be accommodated in one system.

Download Brochure     View Catalogue Pages

Case Study     Technical Manual

User Guide     Display Kit Manual

Hub Kit Manual

Features & Benefits

  • 3.2mm low profile batteries require minimal space in the forearm
  • Fully charged within 4 hours
  • Easy-release magnetic charger
  • 10 language options
  • Flexible configuration as the hub can be placed anywhere in the forearm
  • Simple two-button operation to activate and select models
  • Compatible with all powered upper limb systems with equivalent power rating (8.4V at full battery charge, 7.0V at low battery cut off, 5.0A peak current). Please contact your local service centre to confirm compatible prosthetic hand systems.
