RevoLock®

Waterproof
Yes
Weight Limit
100kg - 135kg
Build Height
19mm
Snap/Threaded Insert Weight
5.9 g

Key Features

RevoLock® Align is a lanyard system providing users with unrivaled control over the lanyard tension at all times, during donning and doffing of a socket over a liner. This kit is commonly used in both upper and lower limb devices, and allows the users alignment to be accommodated within the socket. RevoLock offers all the benefits associated with lanyard suspension.

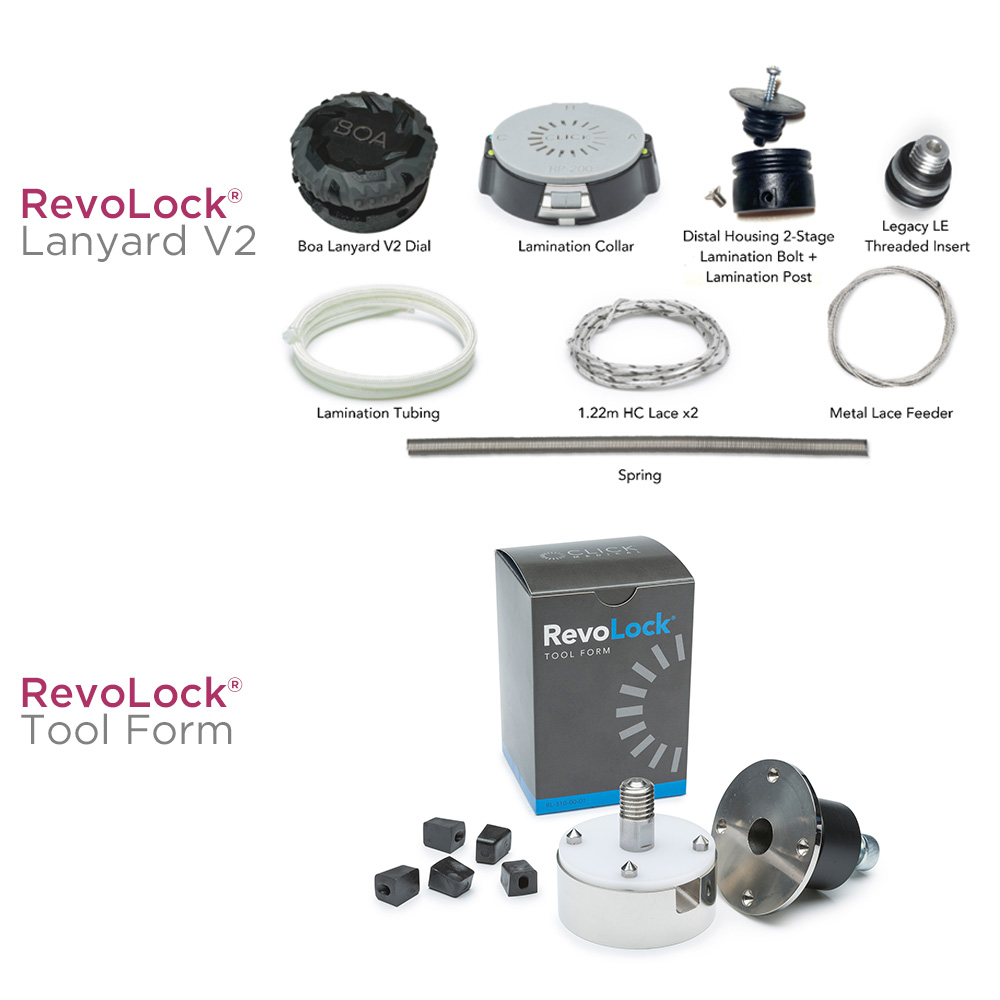

The Revolock® Lanyard V3 Kit with BOA® Dial – Similar to the Lanyard V2 kit, the V3 model features an improved distal housing and lamination post. Its compact design reduces the risk of cord snagging during the fabrication process. Now compatible with the Quick Snap insert for seamless connection to the suspension liner.

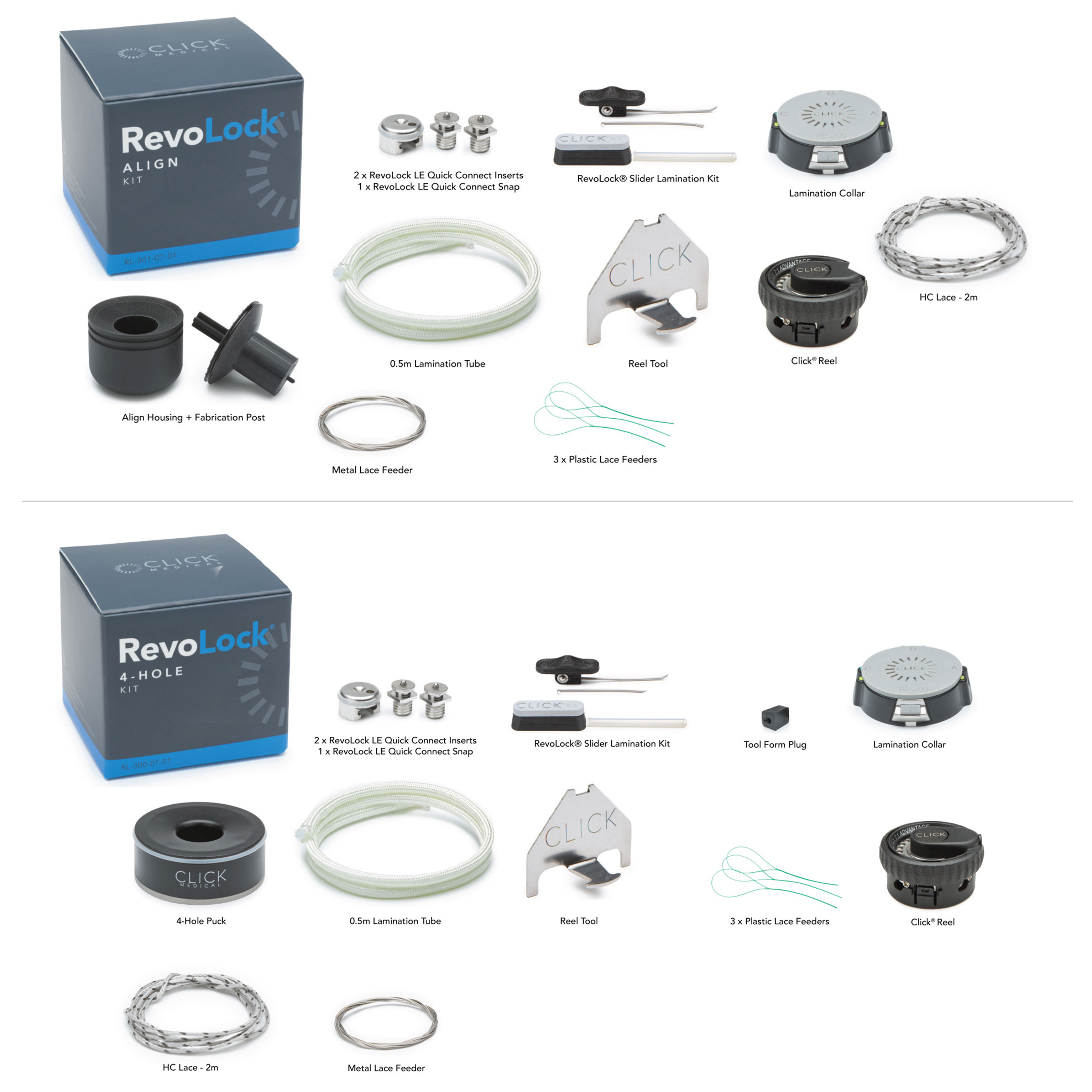

The RevoLock® 4-Hole Kit is new way of applying the familiar RevoLock technology with standard 4 hole alignment systems.

Download Brochure     Solution Guide

View Catalogue Page

Features & Benefits


RevoLock® Align Kit

  • For transferable alignment
  • Single or double-stage lamination
  • Low 25mm build height
  • Upper or lower extremity sockets
  • lightweight system
  • No tool form required
  • User Weight Limit: 135kg

RevoLock® 4-Hole Kit

  • Standard 4-hole alignment
  • Locked and hidden chord
  • 25mm build height
  • Reduced pistoning
  • Slider kit allows user to lock the Click Reel power mode on demand
  • RevoLock® Tool form required for fabrication, sold seperatley
  • User Weight Limit: 135kg

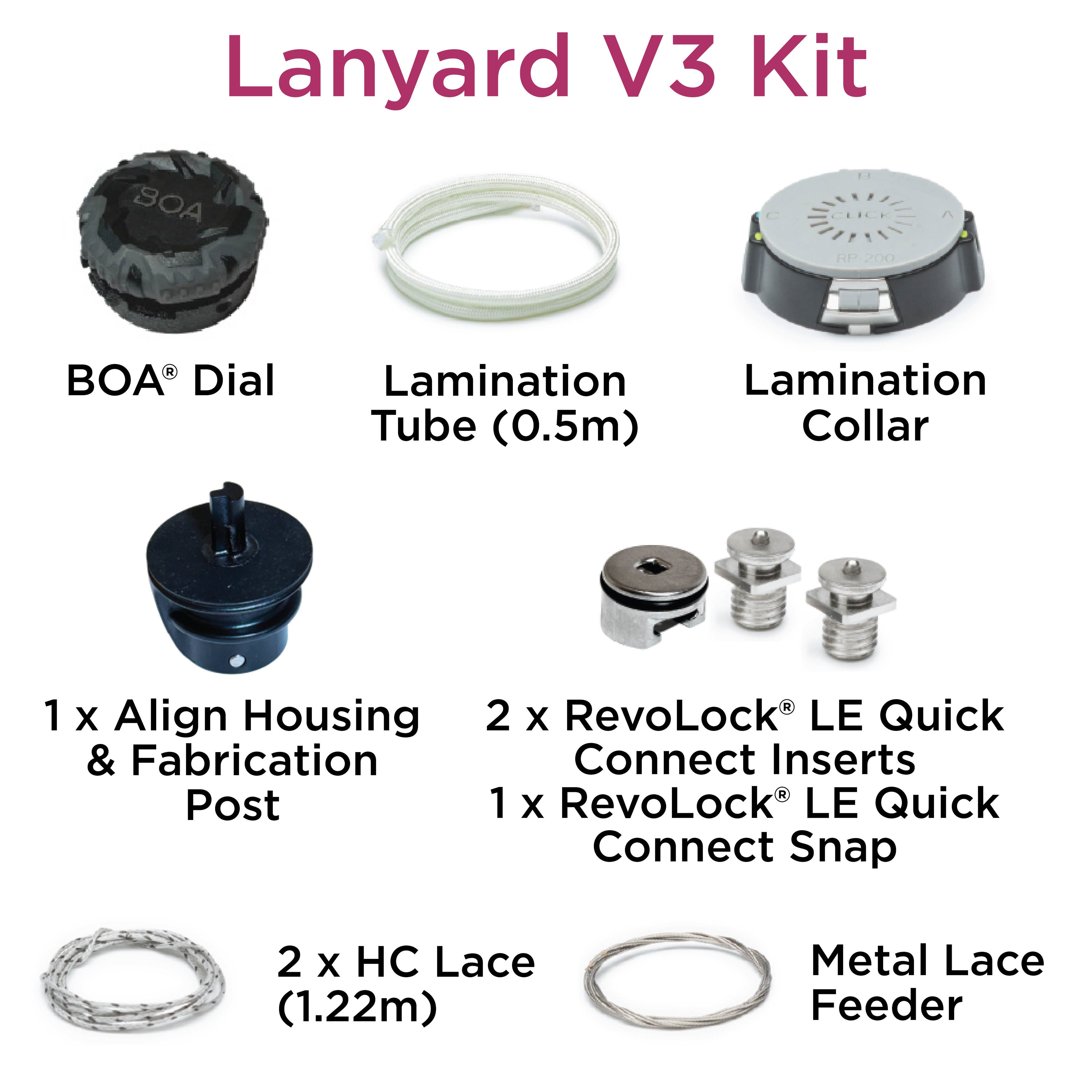

RevoLock® Lanyard V3 Kit

  • Transferable alignment
  • Single or double-stage lamination
  • 25mm build height
  • Lightweight system
  • No tool form required
  • User Weight Limit: 100kg

RevoLock® | Align Kit | 4-Hole Kits | Lanyard V3 Kit


Easy
  • The Click Reel quickly and easily pulls the limb into position
  • Micro-adjustable when volume or activity levels change
  • Quick Connect Snap makes it easy to attach to the liner
Safe
  • Don or doff while seated, reducing the risk of falls
  • Adjustable suspension reduces pistoning and skin shear
  • Decreased distal tension while sitting allows for fluid recovery and volume stabilisation
Secure
  • Secure suspension regardless of limb position
  • Quick Connect Snap locks onto the liner and prevents unintentional detaching
  • New slider feature locks limb in the socket while still allowing for micro-adjustability

Technical Specification



RevoLock® Align Kit
(NCMRL-301-07-01)

Build Height of Click® Reel: 14mm visible profile, 24mm total
Reel Diameter:: 42mm
Reel Weight: 71g
Distal Housing Diameter: 45mm
Distal Housing Height: 35mm
Distal Housing Weight: 28g
Snap/Threaded Insert Weight: 33g
Tube/Sheath Length: 0.5m
Lace: 2m HC (High Capacity) Lace
User Weight Limit: 300 lb/135kg

RevoLock® 4-Hole Kit
(NCMRL-300-07-01)

Build Height of Click® Reel: 14mm visible profile, 24mm total
Reel Diameter: 42mm
Reel Weight: 71g
4-Hole Housing Diameter: 64mm
4-Hole Housing Height: 24.5mm
4-Hole Housing Weight: 116g
Snap/Threaded Insert Weight: 33g
Tube/Sheath Length: 0.5m
Lace: 2m HC (High Capacity) Lace
User Weight Limit: 300 lb/135kg

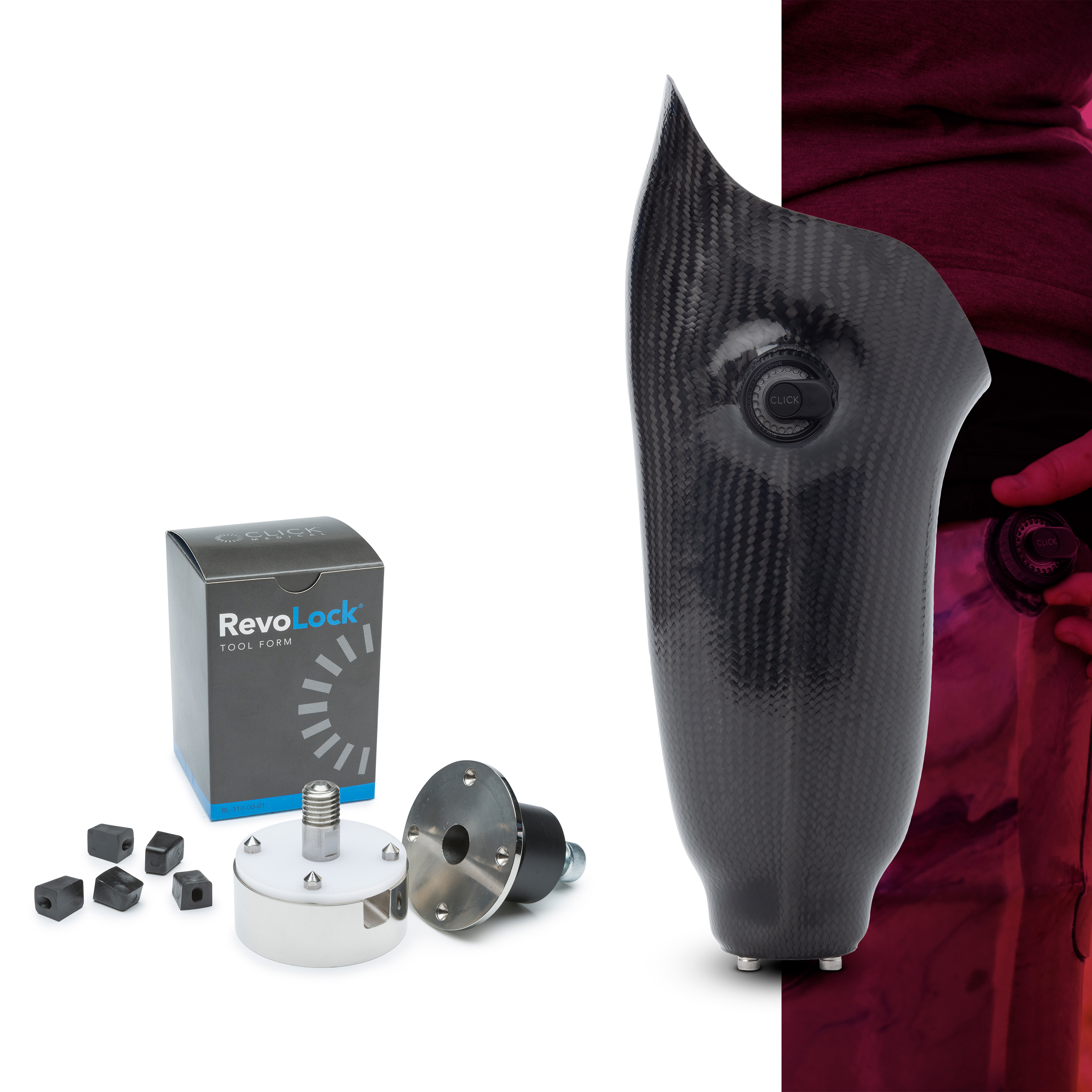

RevoLock® Tool Form
(NCMRL-310-00-00)

65mm x 25mm Fabrication Tool Form
Required for fabrication of RevoLock 4-Hole kit
Polished stainless steel material - reusable for many fabrications
Replacement parts available



RevoLock® Lanyard V3 Kit

(NCMRL-302-22-01)

Build Height of BOA Lanyard V3: 19mm
Dial Diameter: 36 mm
Dial Weight: 14g
Distal Housing Diameter: 39mm
Distal Housing Height: 29 mm
Distal Housing Weight: 26.2g
Snap/Threaded Insert Weight: 5.9 g
Tube/Sheath Length: 0.5 m
Lace: 2m HC (High Capacity) Lace
User Weight Limit: 220 lb/100kg
