Prosthetic Knees

NOHP3/NHP3

View Features

Impact Level

Medium

Weight Limit

125kg

Axes

Polycentric

Weight

Approx. 1025g

Swing Phase

Pneumatic

Warranty

3 years

Enquire Now

Download Brochure

Key Features

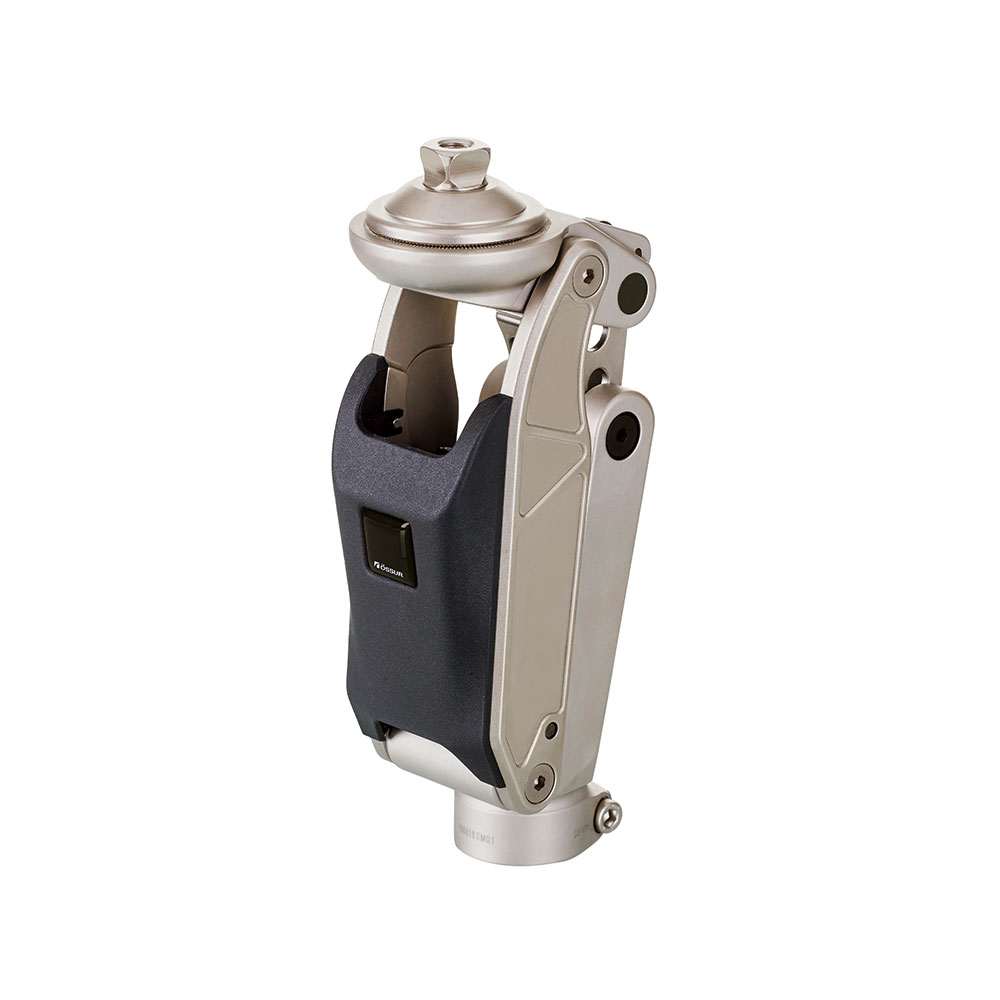

The NOHP3 polycentric knee provides a high degree of geometric stance stability and a smooth pneumatically controlled swing phase thanks to its long side links. Patients in Mobility Class 3 can benefit from the High Performance cylinder, which has independent flexion and extension adjustments. NHP3 can be combined with any choice from the range of proximal adapters (sold separately).

Download Brochure View Catalogue Page

Read CES OSS K03 Knee Wall Chart

Features & Benefits

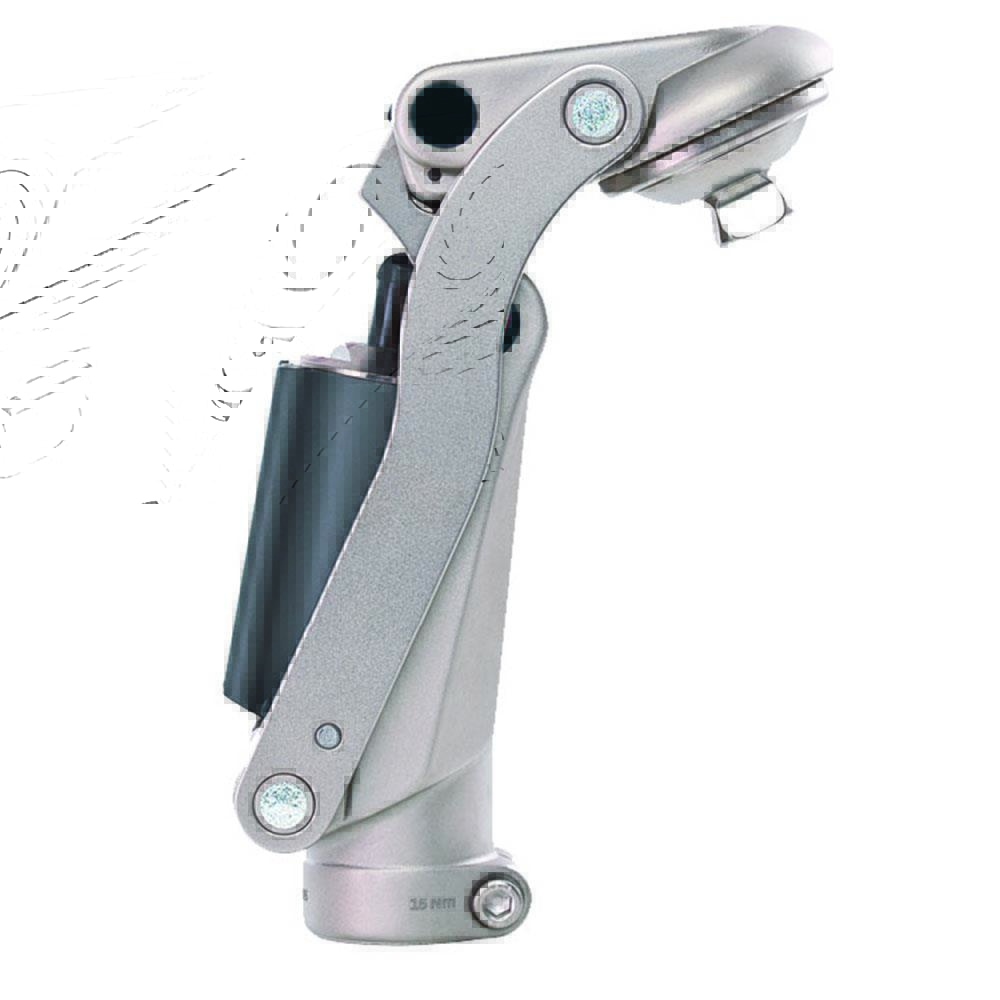

Polycentric construction provides improved ground clearance in swing phase
Transition into swing phase adjustable by means of stance wedges

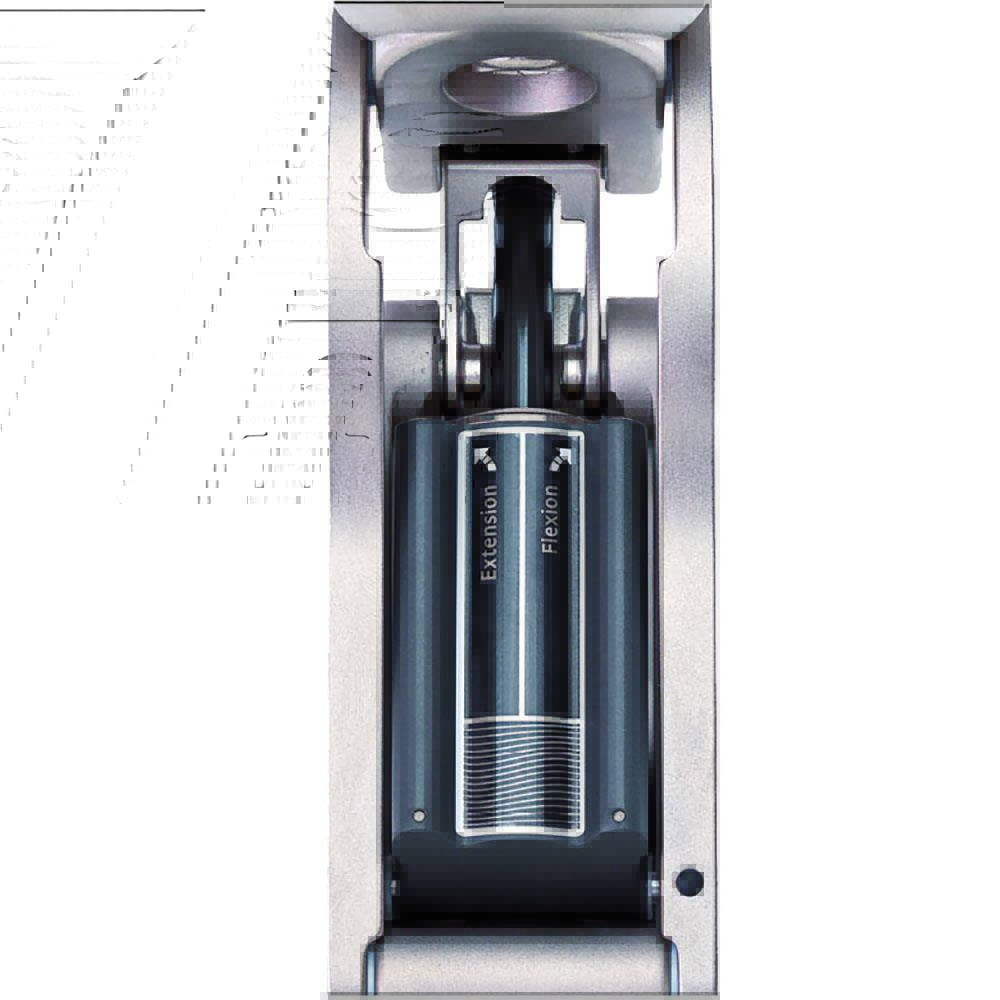

Pneumatic cylinder with independent flexion and extension adjustments
Unlimited rotation and 5mm of shift in any direction are possible
Various adapter options each offer a unique combination of features - unlimited rotation, 5mm of shift in any direction, 10o of angular adjustment (pair of wedge shaped rotatable disks), or threaded connection between the knee and socket adapter.
NOHP3 is supplied with a male pyramid. NHP3 is supplied as chassis only - proximal adapters must be ordered seperately

View Technical Spec

Technical Information

Total Fitted Height (1)	Effective Module Height (2)	Fitted Height (3)
NOHP3(w/ Pyramid):215mm	NOHP3(w/ Pyramid):158mm	NOHP3(w/ Pyramid):18mm
NHP3(w/ Loop Adapter):207mm	NHP3(w/ Loop Adapter): 168mm	NHP3(w/ Loop Adapter): 27mm
NHP3(w/ 3 Arm Adapterr):205mm	NHP3(w/ 3 Arm Adapterr):166mm	NHP3(w/ 3 Arm Adapterr):27mm
