Prosthetic Knees

NOFM2

Impact Level
Low Medium and High Impact Scale Icon in BlackLow
Weight Limit
125kg
Axes
Monocentric
Weight
Approx. 495g
Swing Phase
Integrated extension spring
Warranty
3 years

Key Features

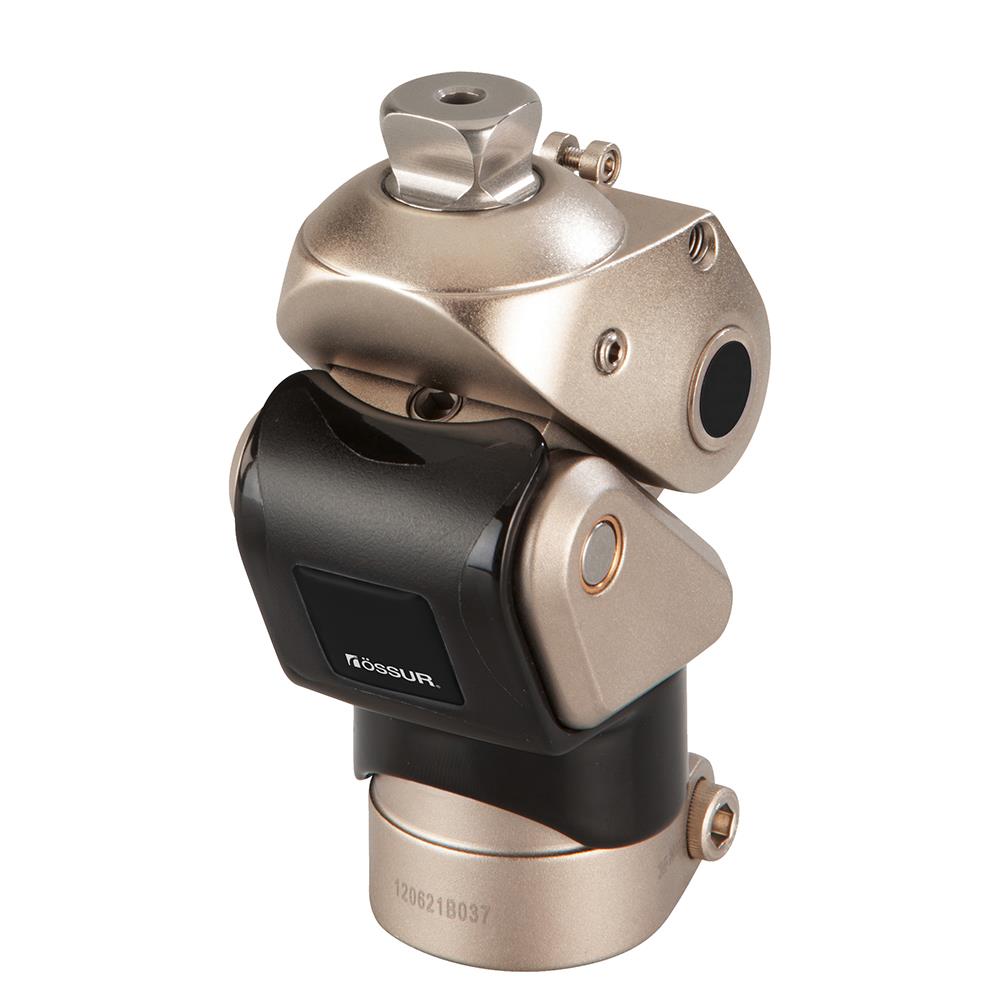

The Össur NOFM2 is a small lightweight monocentric unit which can be used as a free knee with weight activated stance stability, but which also comes complete with a lock mechanism and thigh release, making this a very versatile unit.

In position 1, the knee will lock automatically when extended. For position 2, lifting the lever up to the first stop position will unlock the knee, but upon release, the knee will automatically lock again on extension.

Download Brochure     View Catalogue Page

Read CES OSS K02     Knee Wall Chart

Features & Benefits

  • Compact and lightweight
  • Monocentric construction with finely adjustable stance stability brake to suit the patient's weight or to match the patient's gait
  • Angular alignment adjustment
  • Smooth transition into swing phase, with integrated extension spring adjustable to suit individual requirements
  • Easily converted to SAKL or HOKL with positive locking action
  • Unique, dual-function lock lever

Technical Information

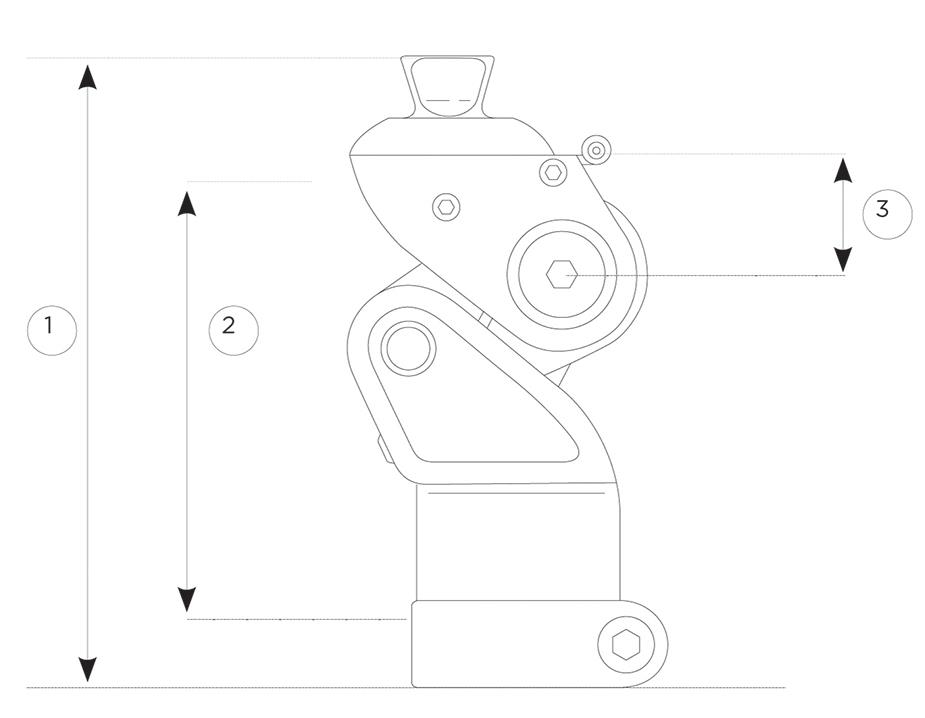

Total Fitted Height (1) Effective Module Height (2) Fitted Height (3)
115mm 63mm 23mm
