Prosthetic Knees

Kinegen Stream

View Features

Impact Level

High

Weight Limit

150kg (NMA3A2500 & NMA3A2500/4)
125kg (NMA3A2500/3)

Axes

Polycentric

Weight

Approx 1120g

Swing Phase

Hydraulic

Warranty

3 years

Enquire Now

Download Brochure

Key Features

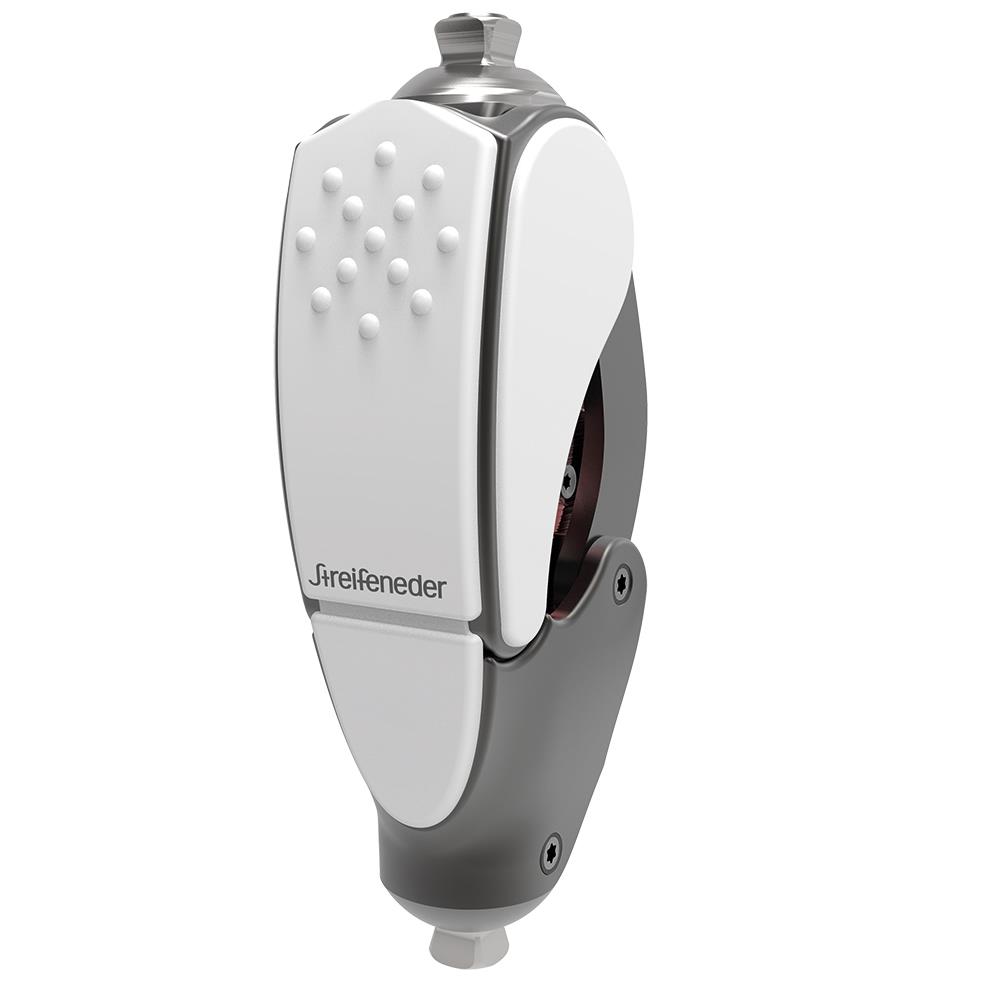

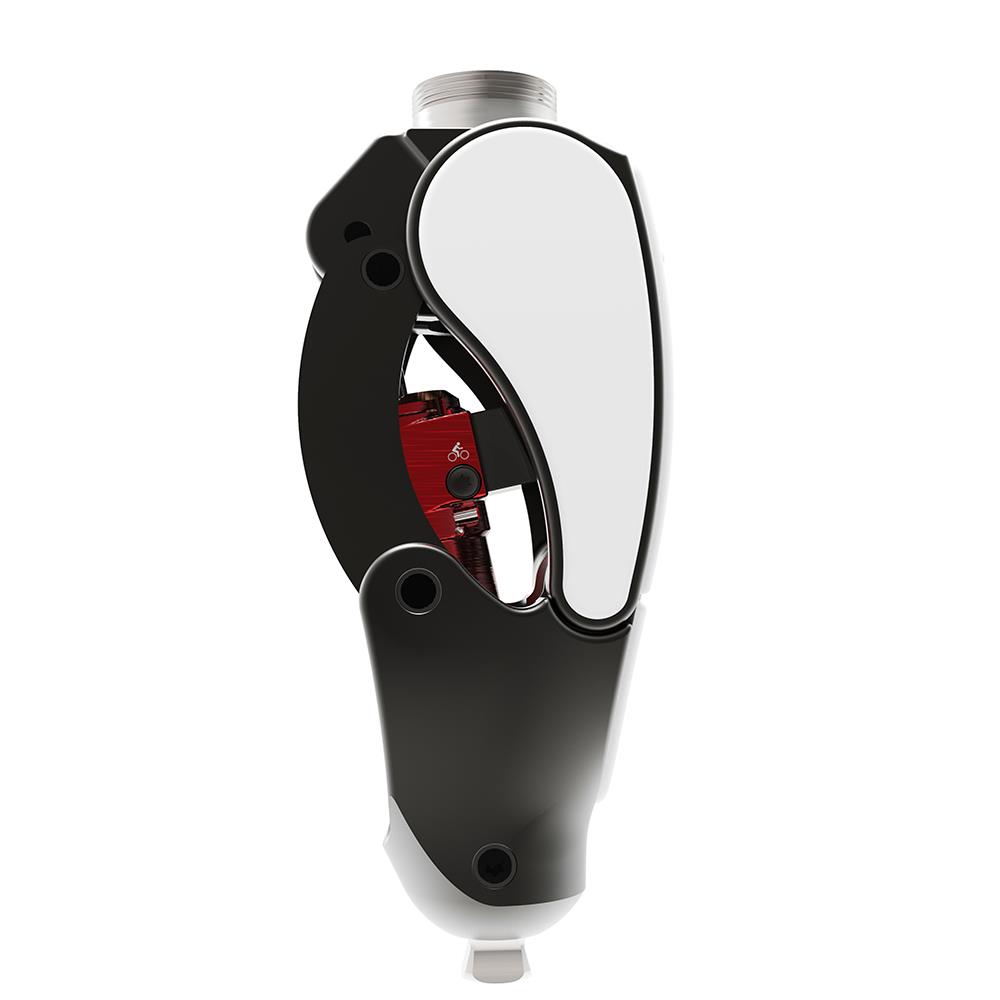

The Kinegen Stream is a polycentric unit with hydraulic swing phase control and pneumatic extension assist for active users up to 150kg. It is geometrically stable in the stance phase and transitions smoothly into the well controlled swing phase with little effort required and excellent control of the final 10 ° of extension to prevent terminal impact.

The Kinegen Stream has a 'cycling' mode enabled by the user by means of a lateral push button with a bicycle symbol.

Download Brochure View Catalogue Page

Case Study Technical Manual

Knee Wall Chart

Features & Benefits

For active patients weighing up to 150kg
'Cycling' mode enabled by the user by means of a lateral push button with a bicycle symbol
High performance hydraulic unit with precise adjustment allows an optimal, individual customisation of the joint
Individually adjustable end position damping to reduce terminal impact

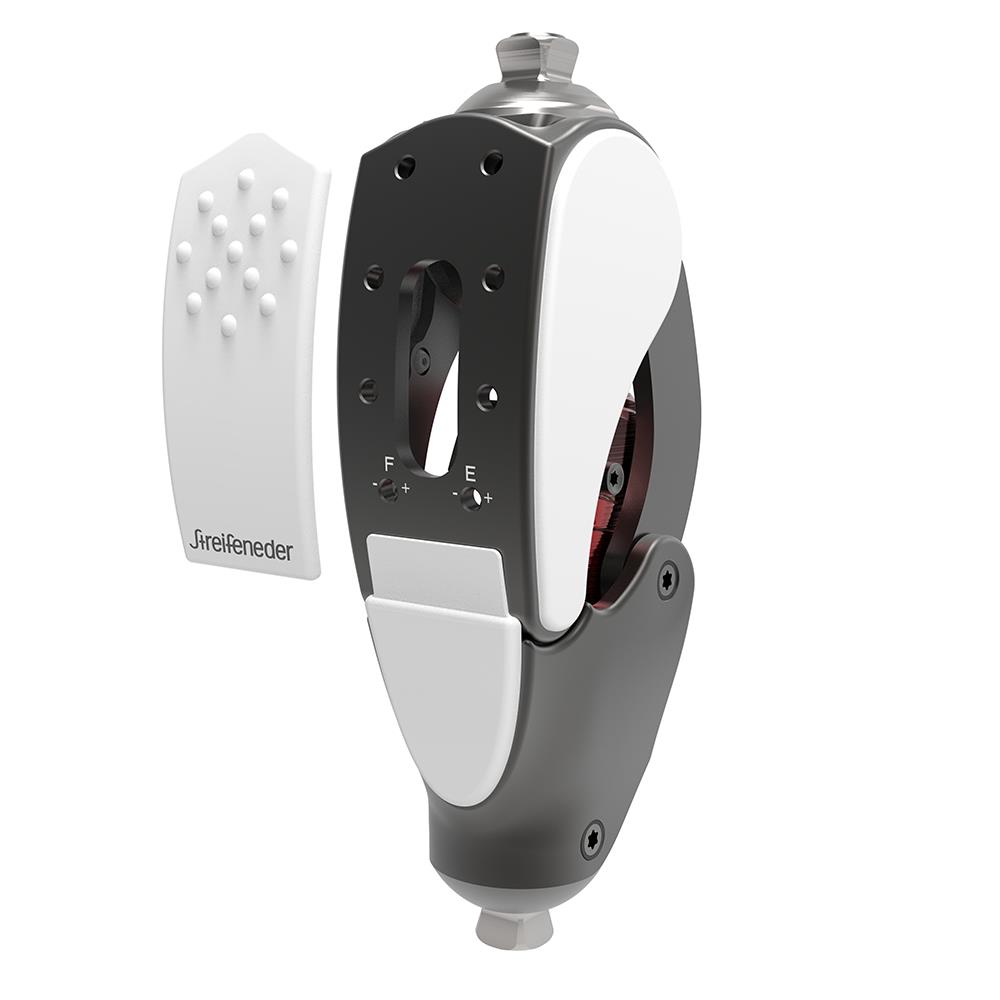

Convenient front access to easily adjustable hydraulic swing phase damper

View Technical Spec

Technical Information

Effective Assembly Height	Total Height Joint Head	Total Height
NMA3A2500: 196mm	NMA3A2500: 36mm	NMA3A2500: 224mm
NMA3A2500/4: 209mm	NMA3A2500/4: 36mm	NMA3A2500/4: 30m
NMA3A2500/3: 203mm	NMA3A2500/3: 222mm	NMA3A2500/3: 217mm
