Prosthetic Feet

Kinnex 2.0

Waterproof
Water Resistant
Impact Level
Low Medium and High Impact Scale Icon in BlackLow|Medium
Weight Limit
125kg
Sizes
24-30
Warranty
3 years
Foot shell - 6 months

Key Features

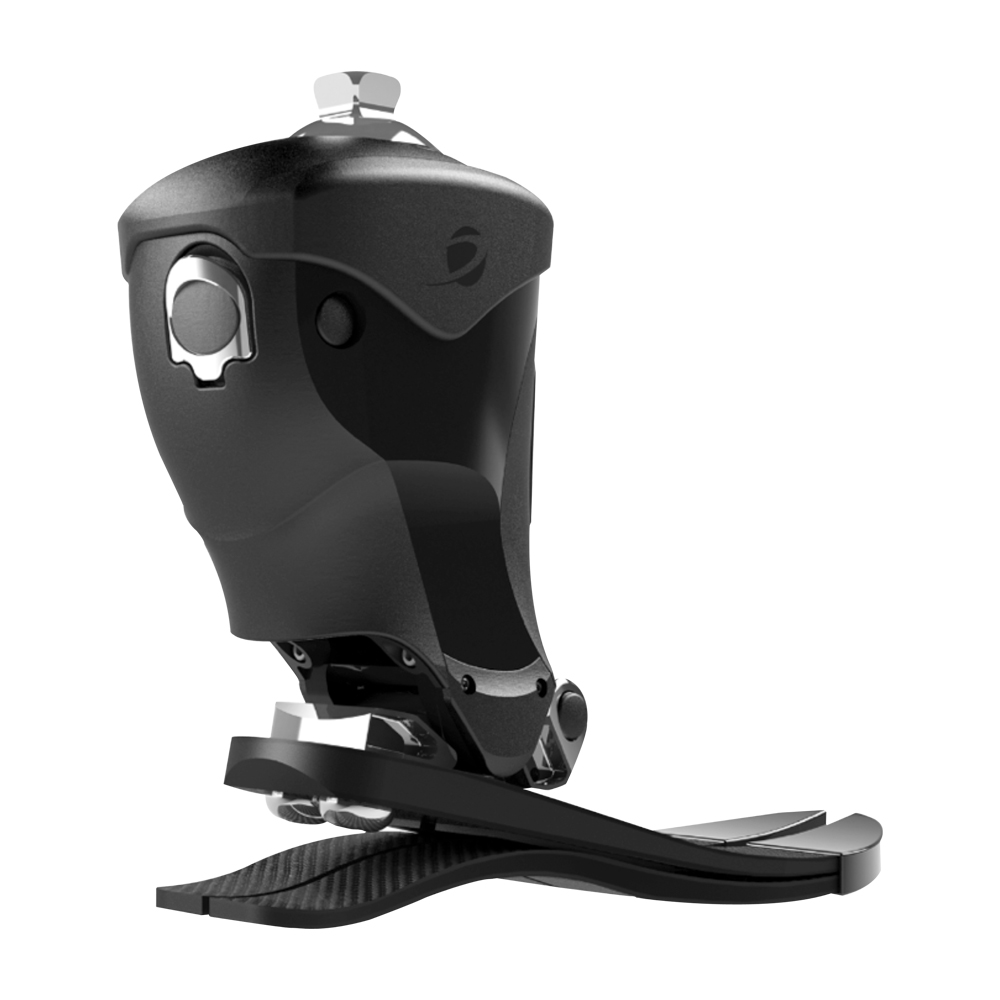

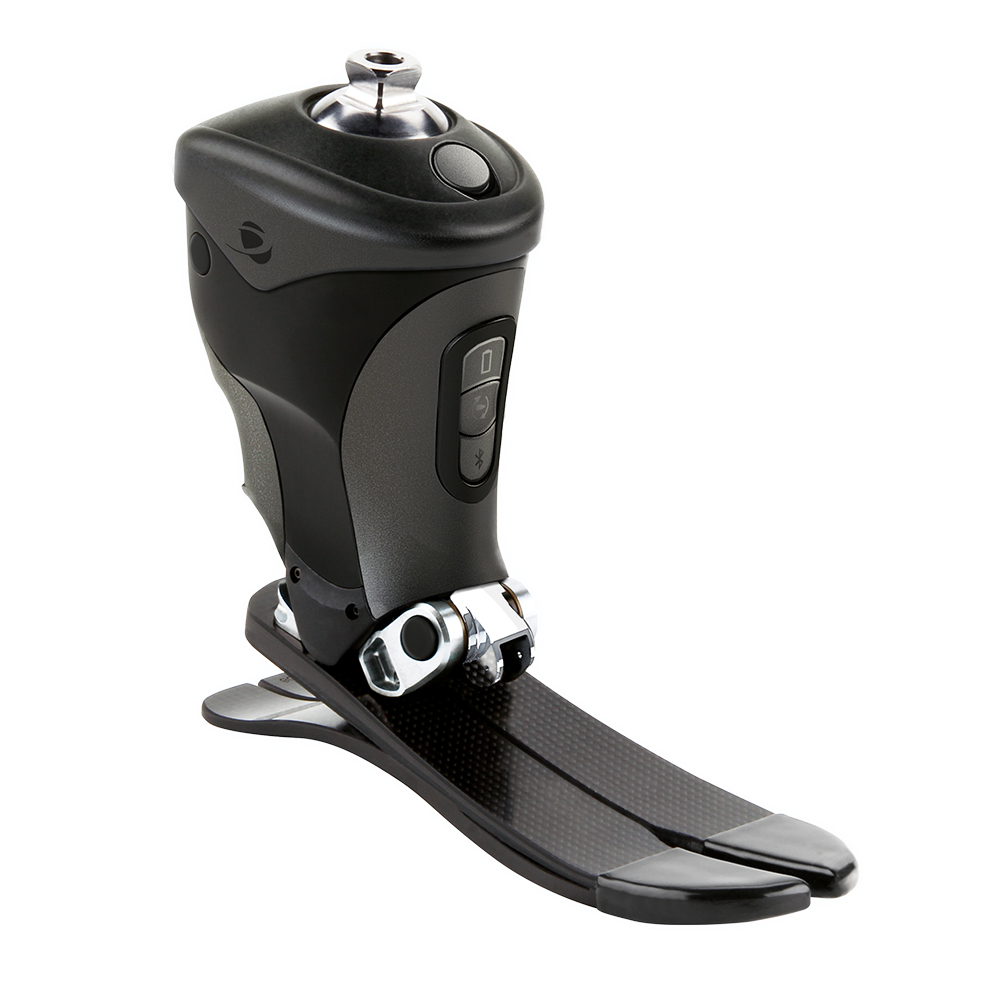

The Kinnex 2.0 utilises cutting-edge microprocessor technology to provide low to moderate impact ambulators (K3) superior ground compliance for everyday activities. The new hydraulic system has been optimised with improved seal technology and a robust cylinder design. With increased durability, the Kinnex 2.0 delivers reliable energy return and storage throughout the day.

Clinicians can lock the ankle in a neutral position for alignment and calibration, customise the setup of the device, and monitor outcomes using the GaitLab app.

The carbon fibre split heel and keel design provides optimal support and range of motion to reduce internal socket pressure, helping to accommodate obstacles and uneven terrain.

Download Brochure     View Catalogue Page

Technical Information     Spare Foot Shell Guide

Features & Benefits

  • Sensor-controlled ankle movement reads and processes data at a rate of 200 times per second, and Rapid Repsonse™ valve technology responds at a rate of 5 milliseconds
  • New hydraulic oil reservoir and seal technology for increased oil capacity and longevity
  • IP67 rated - up to 30 minutes in 1 metre of fresh water
  • Dynamic lock provides a firm foundation, and can be engaged/disengaged using the app or via the button panel on the front
  • Apparel Assist Mode locks the foot at an angle, making it easier for the user to change clothes or footwear
  • When charge is below 20%, users will be alerted by a soft vibration and low profile light on button panel
  • Up to 2” of heel height adjustment allows users to program up to 100 shoe styles

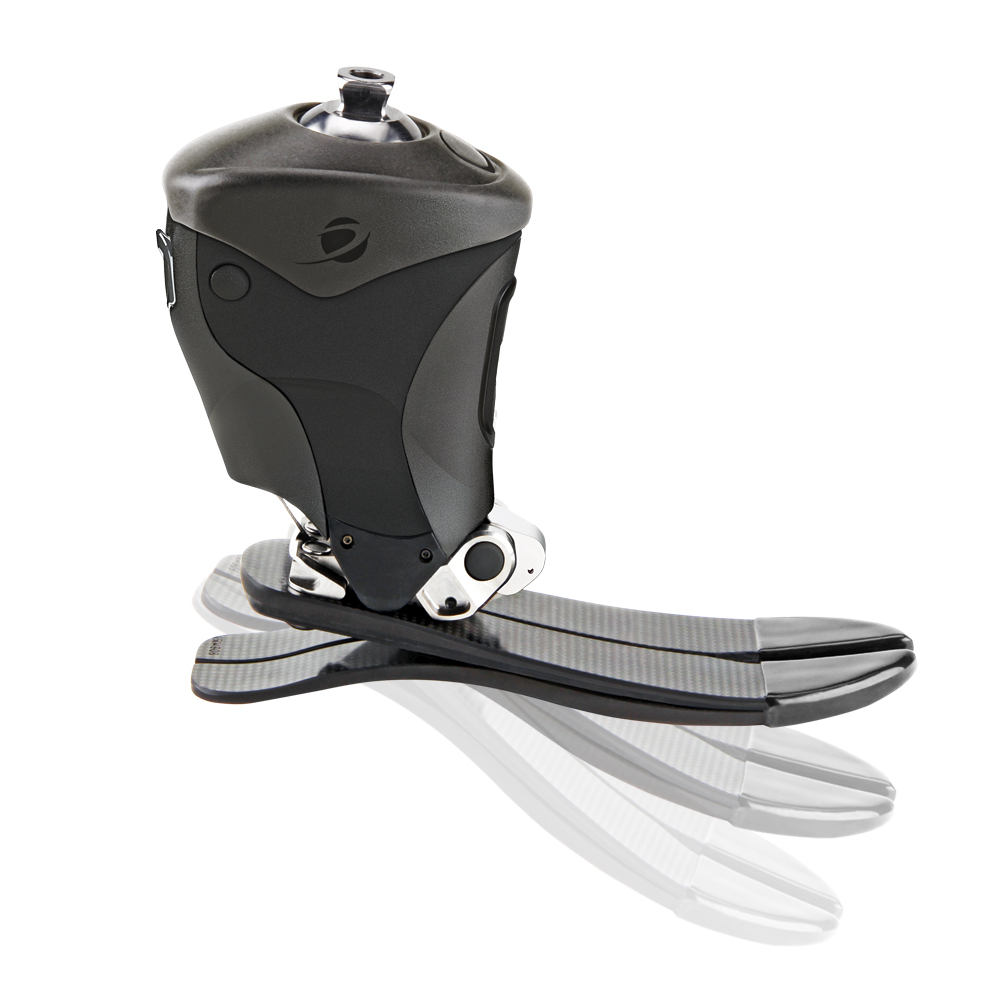

  • 20° plantar flexion and 10° dorsi flexion range of motion means the foot is ideally positioned with the ground
  • User App allows the user to make limited fine resistance adjustments

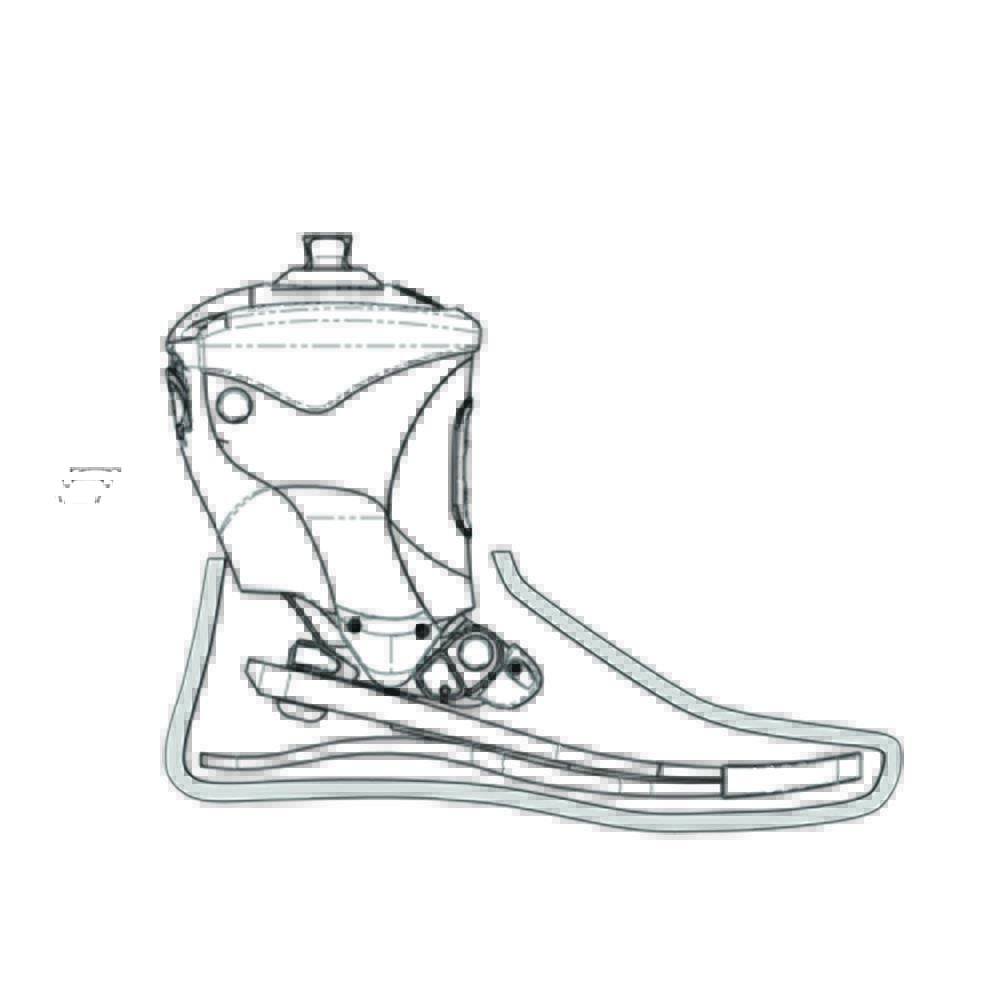

Technical Information

Size (cm) Build Height (cm) Foot inc. Shell
24-25 18.4 1432g
26-28 18.6 1494g
29-30 18.6 1553g
