RevoLock®

Waterproof
Yes
Weight Limit
125kg
Build Height
24mm
Dial Height
22mm
Items Included
M10 threaded liner fitting
as standard, M6 threaded
insert available separately

Key Features

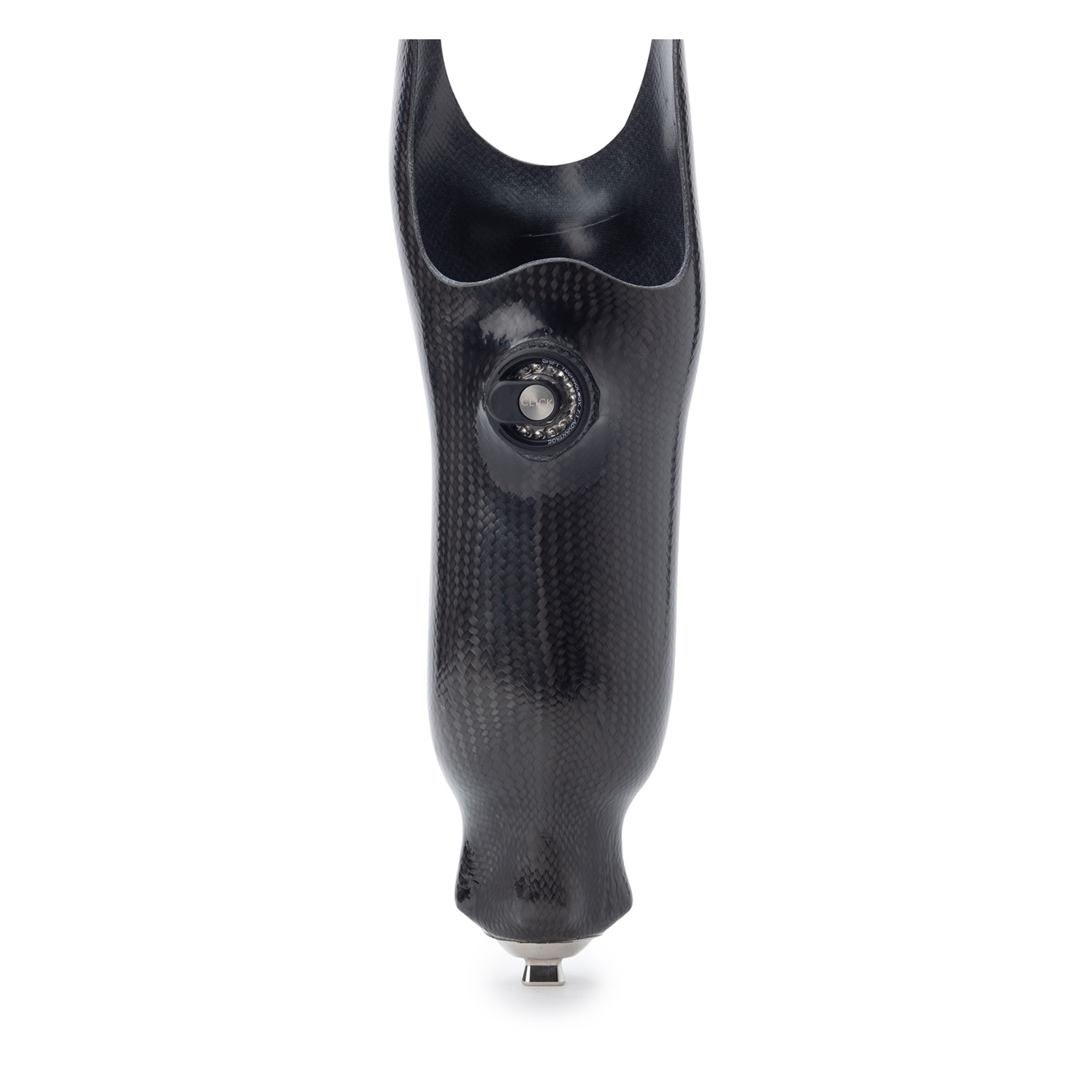

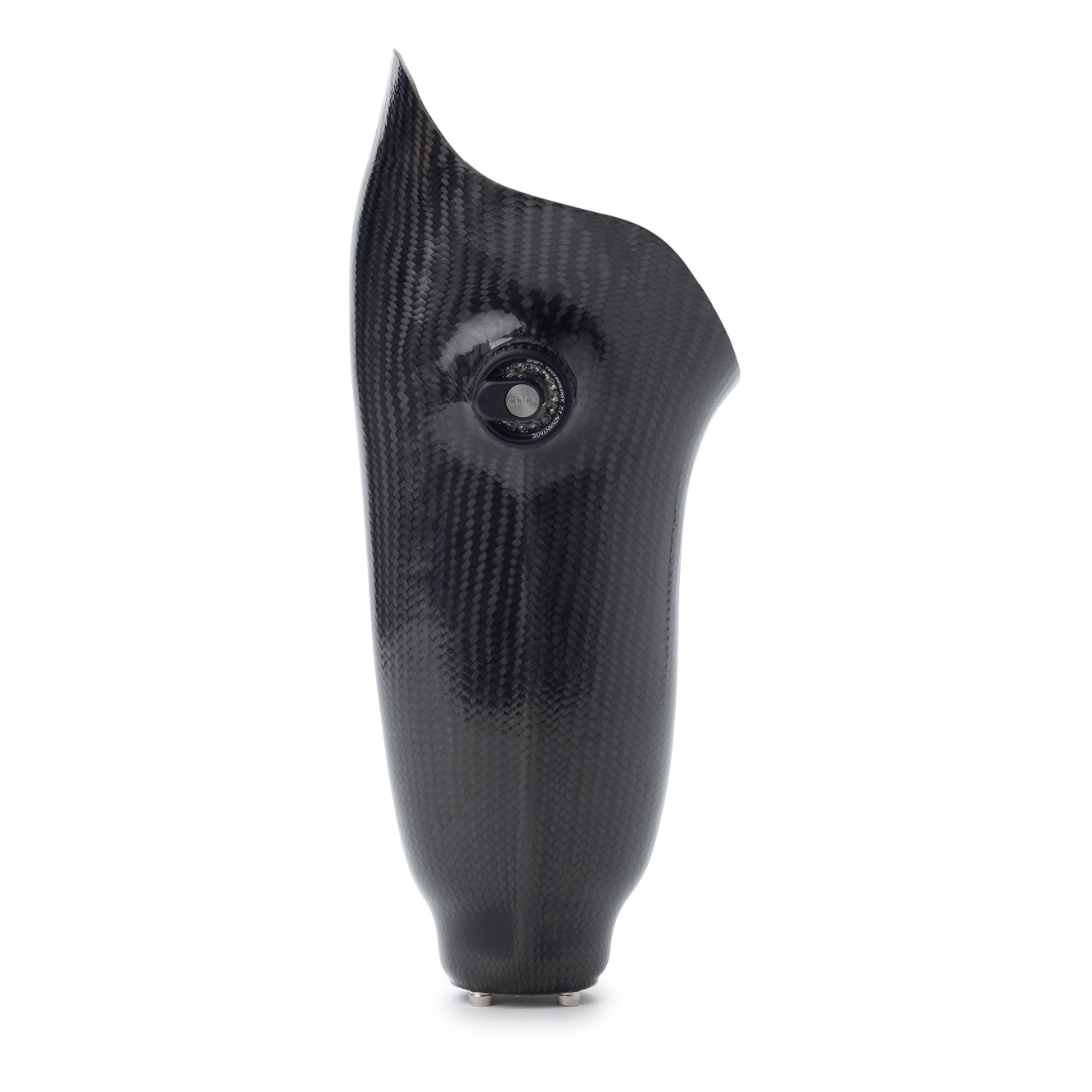

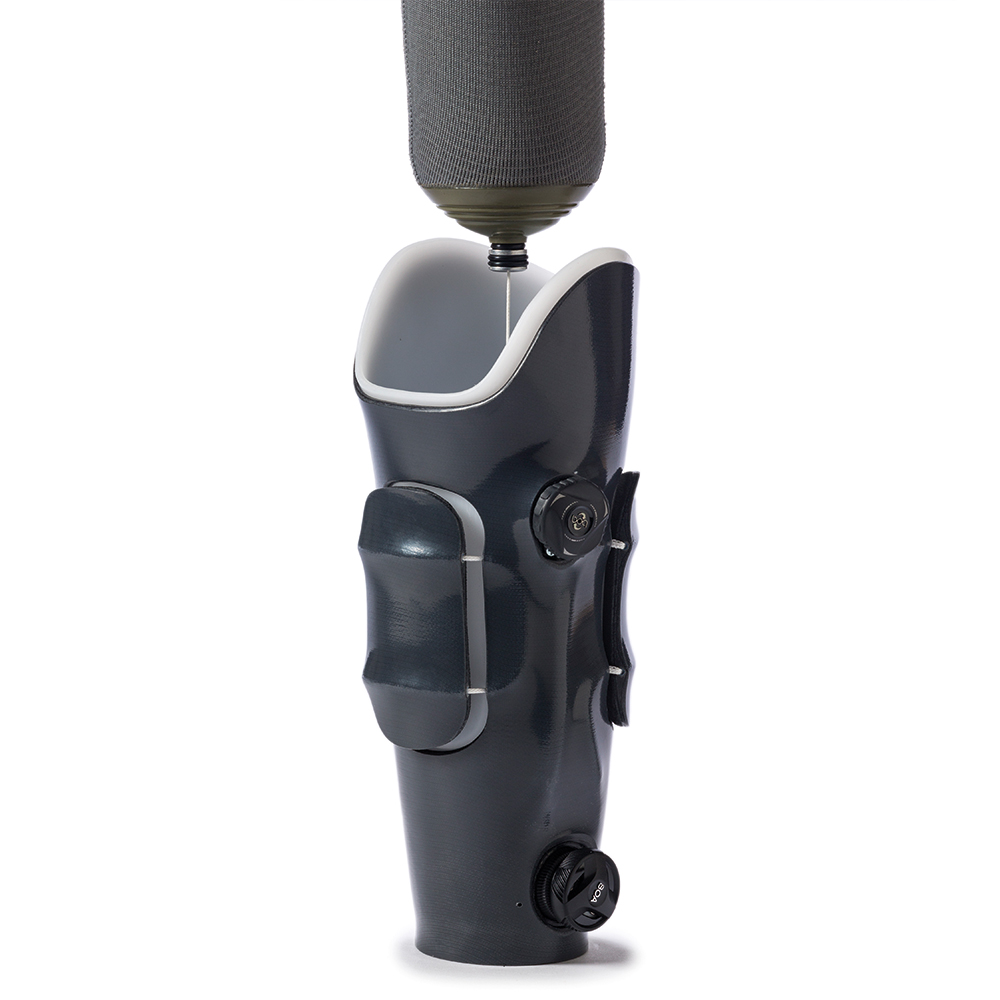

The RevoLock Lanyard by Click Medical adjusts tension within the socket to maintain proper suspension, through 2:1 mechanical leverage which balances speed of winding with power. It automatically aligns the limb in the socket, allowing patients to easily draw their limb into the socket and avoid pin lock frustrations. The dial allows tension to be adjusted under clothing throughout the day, maintaining proper suspension as volume fluctuates. Whilst drawing the liner into the socket, the lanyard cord is neatly stored inside the dial which can
be located anywhere on the socket to allow for easy reach.

Download Brochure     Technical Information

View Catalogue Page

Features & Benefits

  • Adjustable tension reduces pistoning
  • Serves as both a diagnostic and definitive socket kit
  • Eliminates air transfer with distal air lock design
  • Offers patients the ability to don whilst seated
  • Uses strong and fatigue resistant Spectra Lace
  • High lanyard tension with 2:1 mechanical advantage
  • Waterproof system, making it ideal for use in a swimming or bathing prosthesis
  • Rated to 150kg loading
  • Compatible with multiple RevoFit systems
  • Maximum travel of 55cm between distal end of socket and end of the lanyard
