Prosthetic Feet


Impact Level
Low Medium and High Impact Scale Icon in BlackMedium
Weight Limit
Approx. 650g
Swing Phase
3 years

Key Features

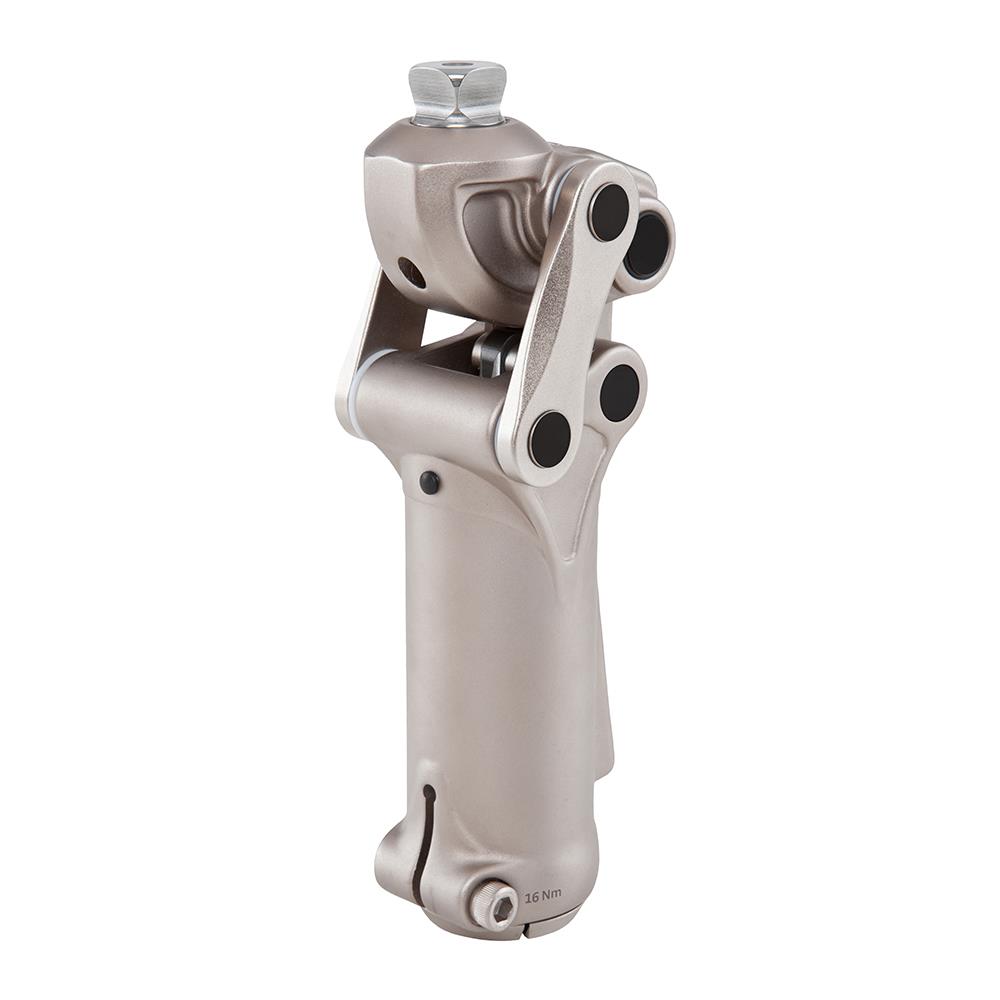

This lightweight, polycentric knee has a pneumatic cylinder that provides a smooth swing phase control. It is compact and slim, making it an ideal option for use with children who have outgrown paediatric knee units, or for adults who require a slim cosmesis. When flexed, the knee’s design still allows a neat and shapely cosmesis to be produced.

Further features include adjustable geometry. This allows the knee’s geometric stability to be increased or decreased, dependant on the patient’s ability. This makes it particularly suitable wherever there is a need to readily change the way the unit transitions from stance to swing phase, whilst still providing positive stance stability, such as on a hip disarticulation prosthesis.

Download Brochure     View Catalogue Page

Knee Wall Chart

Features & Benefits

  • Lightweight and robust
  • Compact and slim
  • Pneumatic swing phase control - the independent adjustment of the flexion and extension valves, allows the swing phase to be easily set up to meet the individual needs of the user. On extension, the knee geometry automatically provides stance stability.
  • High stance phase stability
  • Adjustable stance phase geometry can be easily adjusted to provide the transition from stance to swing that most suits the user's requirements
  • High flexion angle at 160°
  • Polycentric joint construction provides improved ground clearance at mid swing, reducing the risk of catching the toe and stumbling

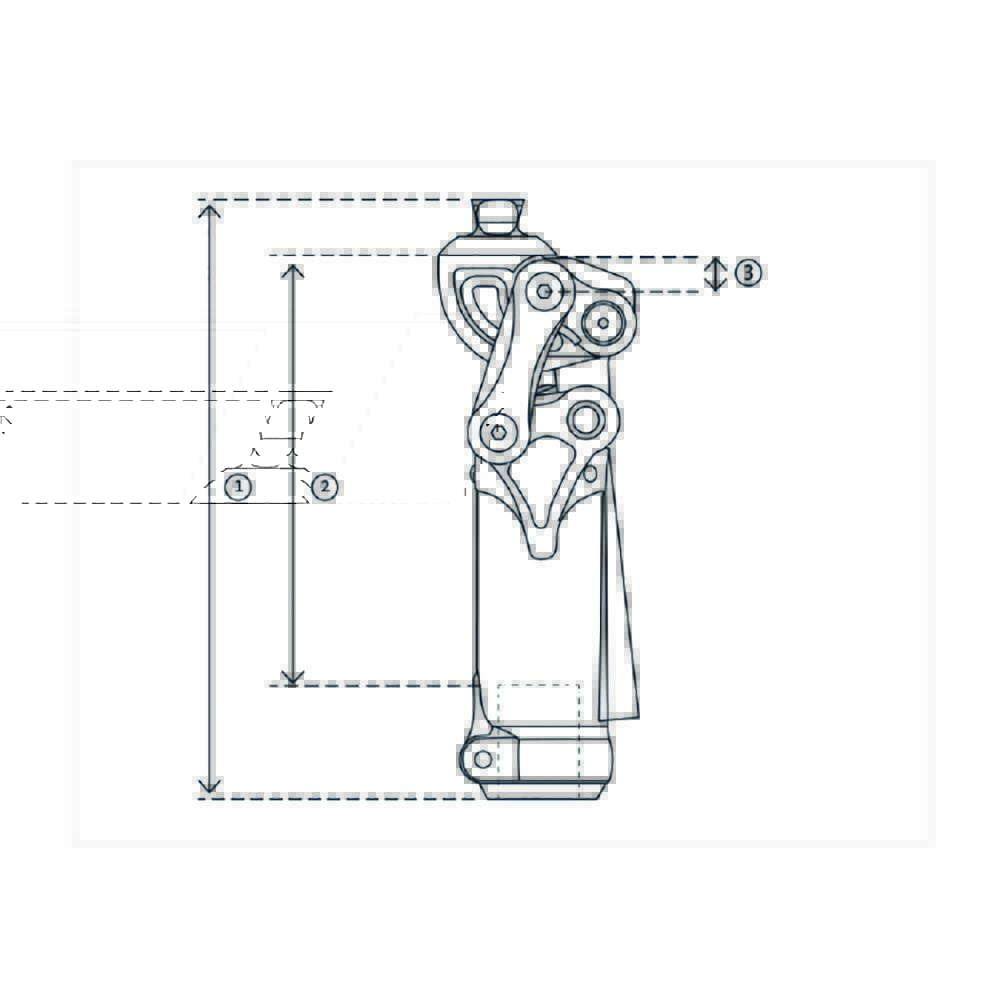

Technical Information

Total Fitted
Height (1)
Effective Module
Height (2)
Height (3)
195mm 160mm 18mm
