Eye Tracker

Lumin-i by Smartbox

View Features

Device Type

Communication Device

Installation Procedure

Engineer

Operating Method

Eye Gaze

Manufacturer

Smartbox

Enquire Now

Key Features

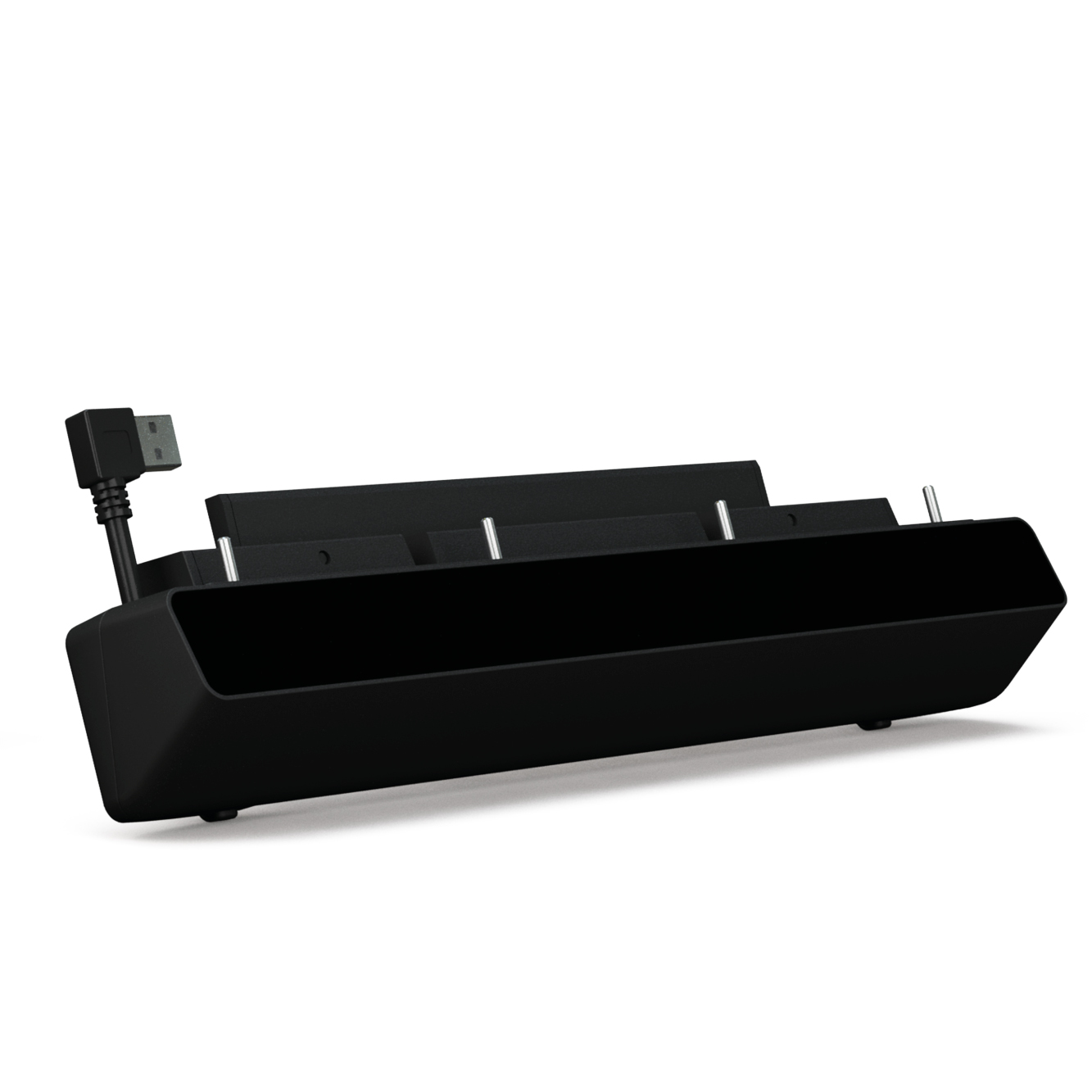

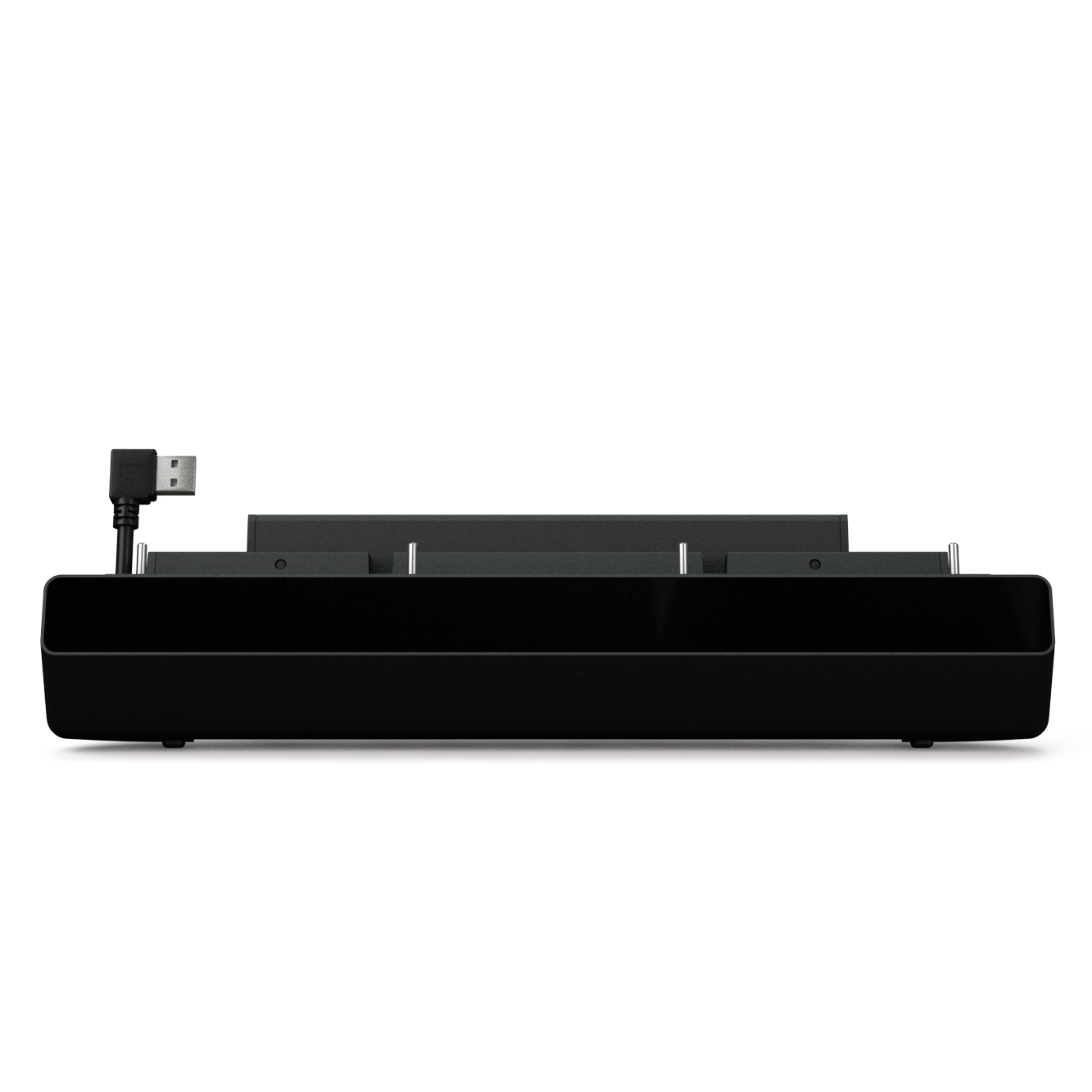

The Lumin-i is the first eye tracker for AAC that is powered by Smart Eye, a global leader in eye tracking technology for the automotive, aerospace and research sectors, providing increased accuracy and responsiveness. Key features include a large track box that tolerates a wide range of head movements and positions, a unique anti-reflective setting for users who wear corrective glasses with coatings or filters, and a bespoke built-in camera unit that transforms the Grid Pad 12 and Grid Pad 15 communication aids into robust and dedicated eye gaze devices.

Features & Benefits

Developed with Smart Eye technology
Optimised for Grid 3 AAC software
Incredibly responsive 60Hz tracking
Operating distance of 45-85cm
High powered IR emitters for outdoor use
Tolerates a wide range of head movements and positions
Designed for a variety of eye colours and conditions
Developed to work in any lighting conditions, making it suitable for use both indoors and outdoors
Unique anti-reflection mode

Seamless Tracking


View Technical Spec

Technical Information

Sampling rate	60Hz
Tracking box	35 x 30 x 65cm distance
Operating distance	45 - 85 cm
Accuracy	0.5 degrees
Precision	0.1 degress
Blink recovery time	1 frame
Gaze recovery time	1 frame
Latency	25 ms from camera exposure
Eye tracking principle	Dark pupil and corneal reflection
Maximum screen size	24" (16:9 aspect ration)
Operating system	Windows 10
Output data	Gaze point, pupil diameter, time stamp. All outputs as bonicular data with associated quality index.

Compatible Communication Devices

The Lumin-i Eye Tracker has been specifically designed for use with AAC software from Smartbox.

Grid Pad 12
The mid-sized Grid Pad Pro features an extra-long battery life of 15 hours (10 hours with eye gaze). Built around a rugged 12.5" tablet that runs Windows 10 Pro, Grid 3 performs quickly thanks to the powerful i5 intel processor. Turn your device into an integrated eye gaze device with the custom camera unit.

Grid Pad 15
The largest Grid Pad has many of the same elements as the Grid Pad 12, but this new version includes two stand-out features: the Grid Pad 15 has a second rear-facing display that allows users to communicate more effectively in noisy environments. It also has an integrated microbial casing and screen to aid those who are more susceptible to infection. Turn your device into an integrated eye gaze device with the custom camera unit.
