Communication Device

Grid Pad 10s by Smartbox

Device Type
Communication Device
Installation Procedure
Operating Method
Touch Screen, Switch Control & USB Pointing Devices

Key Features

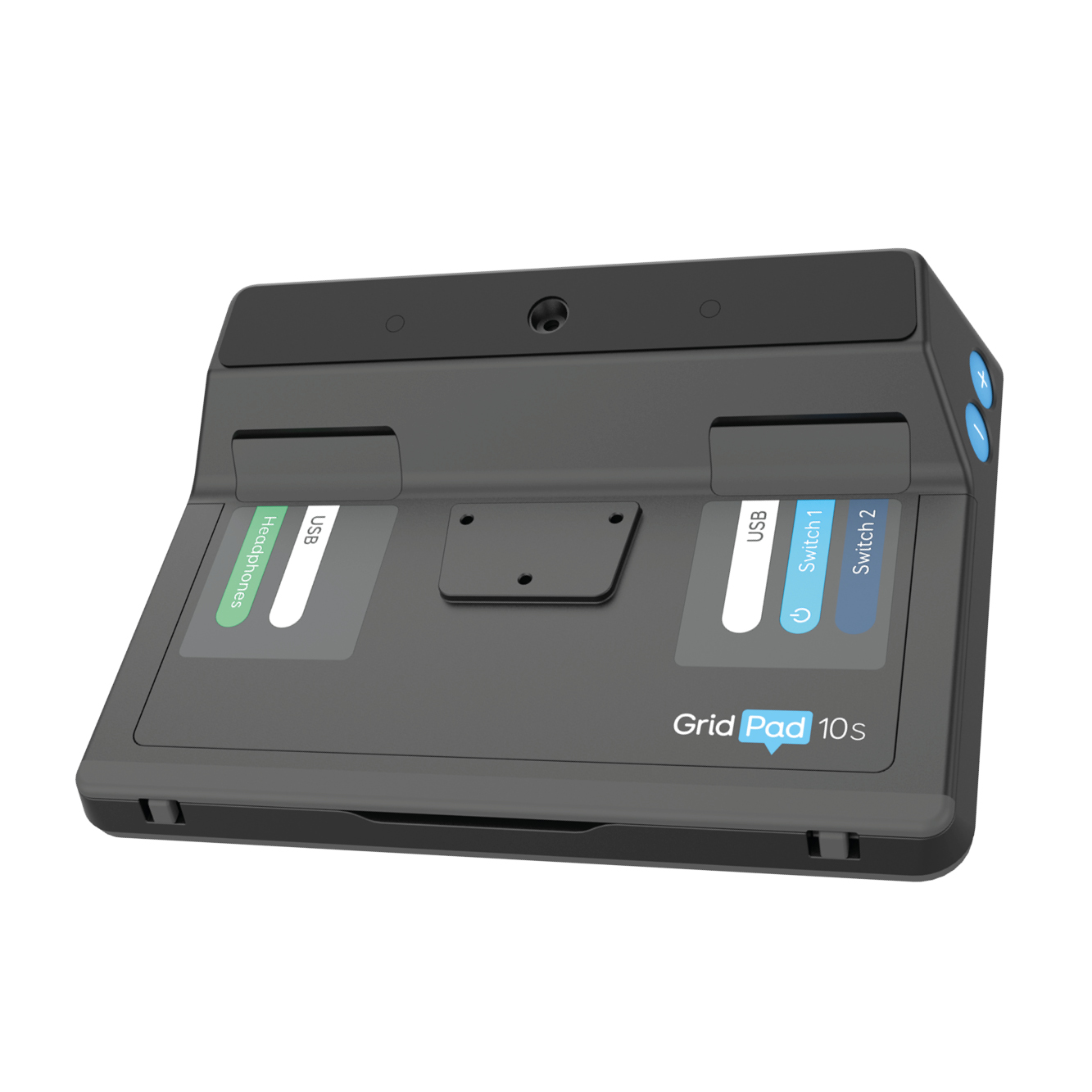

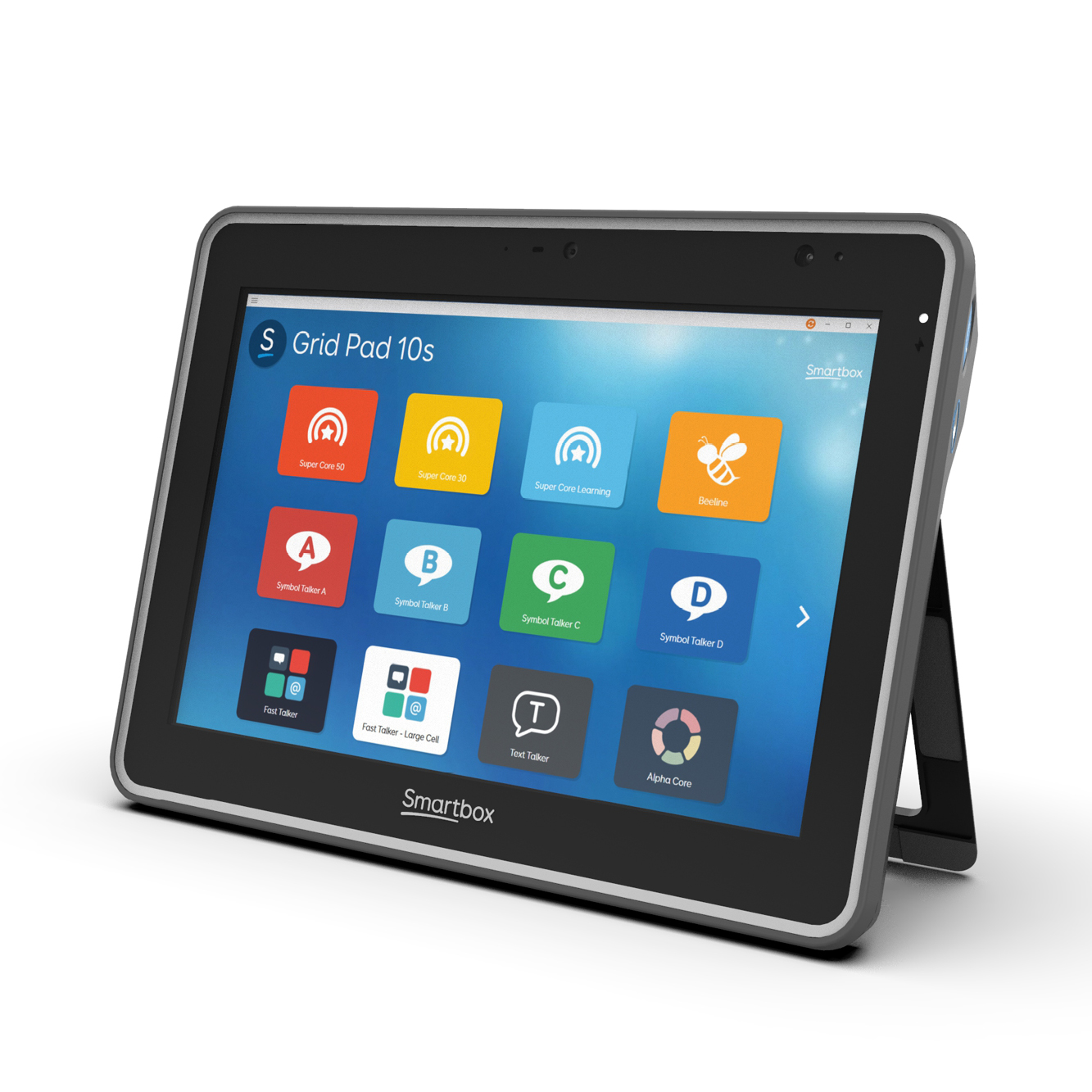

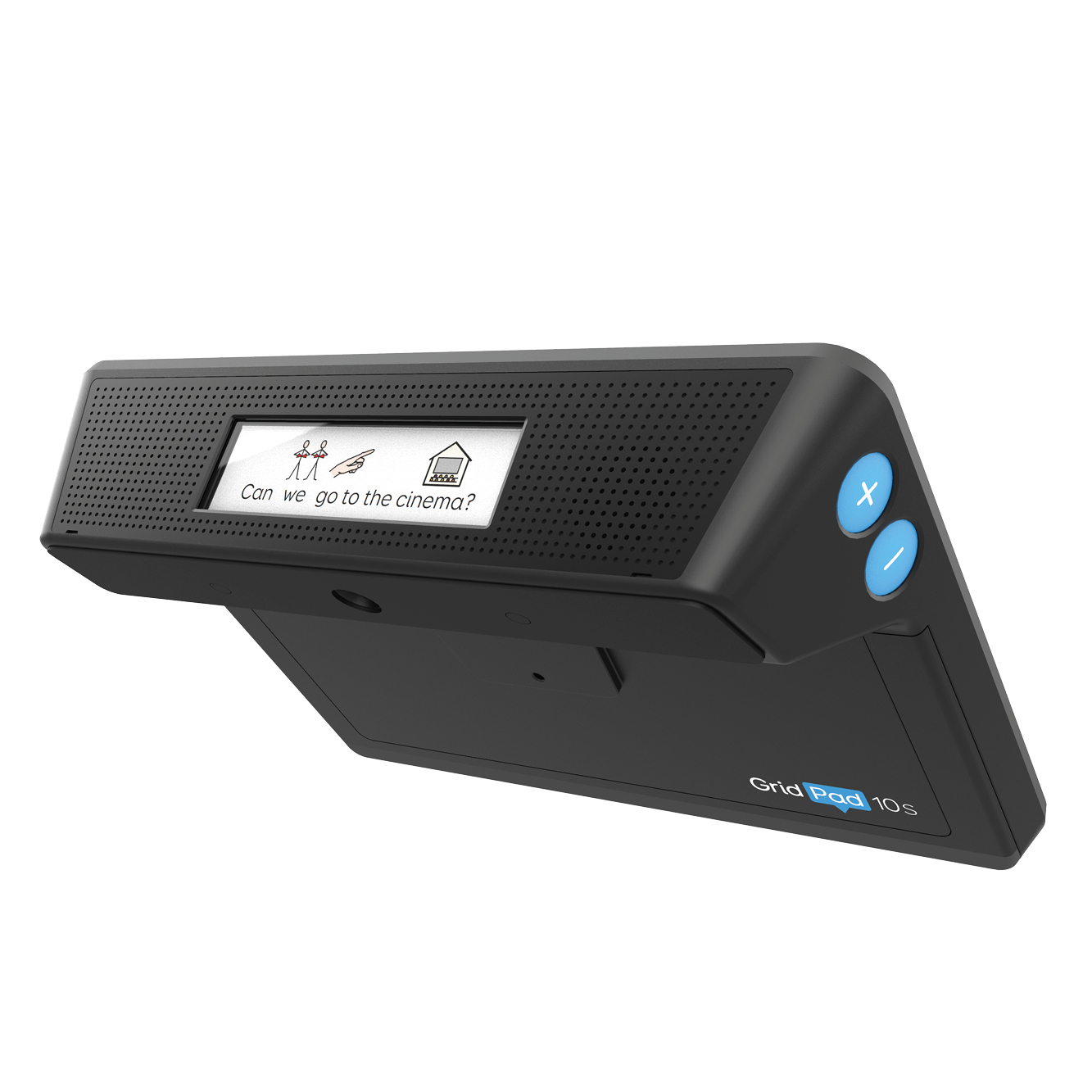

The Grid Pad 10s by Smartbox is designed for communication all day, every day, anywhere. The most flexible Grid Pad in the range, this device is perfect for users who want a portable and rugged communication aid. The Grid Pad 10s has been designed in collaboration with AAC users. With a 7-hour battery life, rugged design, rear-facing second screen and antimicrobial properties, this multi-access device ensures you always have your voice.

The award-winning software Grid 3 is included with every Grid Pad. It provides a complete AAC solution for users to communicate with symbols, text or a combination of both. Other features include computer control, a complete suite of accessible apps, interactive learning resources and access to the Smartbox Online Grid portal.

Technical Specifications

Features & Benefits

  • Powerful Grid 3 software allows complete environment control
  • Intel i5 processor for fast communication
  • 7 hours battery life
  • Switch, touch, USB access
  • 10.1” daylight bright and anti-glare display
  • Remote power button
  • High quality amplified sound
  • Built-in radio and infrared
  • Tactile, water-resistant buttons
  • Antimicrobial casing and screen
  • Multi-angle stand and wheelchair mounting
  • Alternative versions and solutions also available

Technical Information

  Grid Pad 10  Grid Pad 12 Grid Pad 15
 Memory  8GB 8GB 8GB
 Hard Drive  256GB SSD 128GB SSD 256GB SSD
 Connectivity       Wi-Fi, Bluetooth Wi-Fi, Bluetooth Wi-Fi, Bluetooth
Ports 2xUSB, Mini HDMI 2xUSB, Mini HDMI 2xUSB 2.0, SD Card Slot
Screen Size 10.1" Full HD Display 12.5" Full HD Display 15.6" Full HD Display
Weight 1.5kg / 3.2lbs 2.7kg / 6lbs 3kg / 6.6lbs
Battery Life 7 hours 15 hours 14 hours
Three years of Smart Care


Three years of Smart Care are included with Grid Pad 12. This is available in the UK and Ireland only, and includes:

  • Three-year warranty on your device
  • Free repairs, including one case of accidental damage per year
  • Guaranteed access to a swap out device if you need a repair
Alternative Versions - Specifications

Grid Pad 12

The mid-sized Grid Pad Pro features an extra-long battery life of 15 hours (10 hours with eye gaze). Built around a rugged 12.5" tablet that runs Windows 10 Pro, Grid 3 performs quickly thanks to the powerful i5 processor and optional rear-facing second screen accessory.

Grid Pad 15
The largest Grid Pad has many of the same elements as the Grid Pad 12, but this new version includes two stand-out features: the Grid Pad 15 has a second rear-facing display that allows users to communicate more effectively in noisy environments. It also has an integrated microbial casing and screen to aid those who are more susceptible to infection. Turn your device into an integrated eye gaze device with the custom camera unit.
